YD36-008 Trailer Coupler: 2" Ball, 5,000LBS, SAE Ⅲ, Black Coat for Camping/Cargo/Engineering

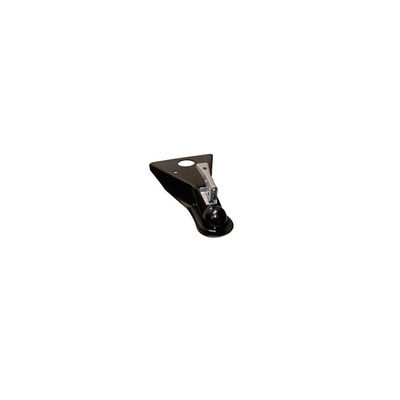

Large Image : YD36-008 Trailer Coupler: 2" Ball, 5,000LBS, SAE Ⅲ, Black Coat for Camping/Cargo/Engineering

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD36-008

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Product Type:	Dedicated Coupler For Medium-duty Trailers	Compatible Ball Diameter:	2" (50.8mm), Only Compatible With Standard 2" Steel Trailer Balls
Channel Width:	Supports Customized Installation For Non-standard Slide Rails	Maximum Capacity:	5,000 LBS (2,268kg), Stable Load-bearing Under Uniform Force
Finish:	Black Coating (epoxy Resin + Zinc Plating Base, 25-30μm Thickness)	Applicable Standard:	SAE Class Ⅲ Standard (traction Transmission Efficiency ≥96%)
Highlight:	2 inch trailer coupler 5000LBS capacity , SAE III trailer coupler black coat , trailer coupler for camping cargo engineering

YD36-008 Trailer Coupler: 2" Ball, 5,000LBS, SAE Ⅲ, Black Coat for Camping/Cargo/Engineering

Product Specifications

Core Parameter Summary

Parameter Category	Specific Specification
Model No.	YD36-008
Product Type	Dedicated coupler for medium-duty trailers (connects trailers with 2" balls to tow vehicles)
Compatible Ball Diameter	2" (50.8mm), only compatible with standard 2" steel trailer balls
Channel Width	Supports customized installation for non-standard slide rails
Maximum Capacity	5,000 LBS (2,268kg), stable load-bearing under uniform force
Finish	Black coating (epoxy resin + zinc plating base, 25-30μm thickness)
Material & Structure	Body: High-strength carbon steel (tensile strength ≥420MPa) Engagement Component: Nitrile rubber anti-slip gasket (reduces noise) Fixing Holes: 4 pre-drilled M10 bolt holes (Grade 8.8 or above)
Applicable Standard	SAE Class Ⅲ Standard (traction transmission efficiency ≥96%)

Key Performance Indicators

Performance Category	Test Standard	Test Result
Tensile Strength	ASTM A370 Standard	≥420MPa
Salt Spray Resistance	ISO 9227 Neutral Salt Spray Test	No rust for 48 hours
Noise Control	GB/T 25982-2010 Automotive Noise Test	≤45 decibels
Fatigue Life	SAE J2638 Standard	≥10,000 cycles

Product Details

Optimized for safety, durability, and comfort in medium-duty trailer towing with core advantages:

High-Strength Structure + Precise Compatibility

Integrally stamped high-strength carbon steel with no weak weld points
Precisely matched with 2" standard steel ball (gap ≤0.2mm)
1.2m drop test verified durability under simulated load

Dual Anti-Corrosion + Long Durability

Zinc plating base + epoxy resin black coating for corrosion resistance
UV aging-resistant coating maintains appearance
Nitrile rubber anti-slip gaskets reduce noise and buffer impact

SAE Class Ⅲ Standard + Customized Installation

Compatible with medium-duty trailers in North America and Europe
No fixed channel restriction for flexible adaptation
4 pre-drilled bolt holes allow adjustable fixed position

Application Scenarios

Towing of Household Medium-Sized Camping RVs

Customized installation adapts to channel-free RVs
Dual anti-corrosion meets multi-environment use
Quiet operation ensures comfortable passenger experience

Towing of Commercial Medium-Sized Cargo Trailers

High-strength carbon steel for high-frequency commercial use
Low wear and high durability reduce replacement frequency
Complies with SAE Class Ⅲ Standard for compatibility

Towing of Engineering Light-Duty Work Trailers

Black coating resists dust adhesion
Anti-slip gaskets buffer impact on rough terrain
Easy maintenance with minimal downtime

Frequently Asked Questions

Q1: There is a "squeaking" noise from the coupler during towing after installation. What is the reason?

Solution: Check anti-slip gaskets for aging, adjust engagement gap to 0.1-0.2mm, and clean engagement surfaces.

Q2: After long-term use in coastal areas, the black coating peels off locally. How to handle it?

Solution: Polish affected area, apply black epoxy touch-up paint, and enhance with protective wax.

Q3: How to confirm if my trailer is compatible with YD36-008?

Check: Ball diameter (must be 2"), trailer weight (≤5,000 LBS), and installation conditions.

Q4: What problems will occur if the torque value is too high or too low when installing bolts?

Proper Installation: Use torque wrench (40-45N*m for M10 bolts), tighten in diagonal sequence, and conduct post-installation test.
