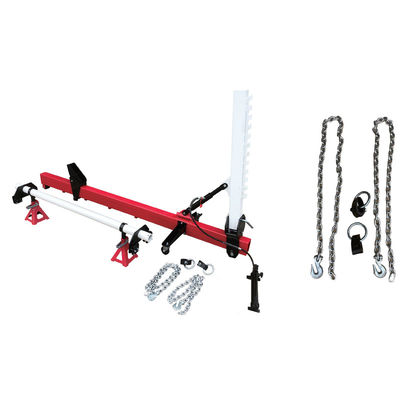

YD42-001 Frame Straightener: 10 Ton, ≤0.5mm Accuracy, for Sedan/SUV/Truck Repair Shops
Product Details
| Product Type: | Hydraulic Frame Straightener With High-strength Clamps And Traction Arms | Rated Capacity: | 10 Ton |
|---|---|---|---|
| Net Weight (N.W.): | 170 Kg | Gross Weight (G.W.): | 200 Kg |
| Package Size: | 3040×400×330 Mm (50 Units Per 20-foot Container) | Accuracy Standard: | Dimensional Error After Straightening ≤0.5mm |
| Highlight |
10 ton frame straightener,sedan SUV truck frame straightener,0.5mm accuracy frame straightener |
||
Product Description
| Parameter Category | Specific Specification |
|---|---|
| Model No. | YD42-001 (Professional-grade frame straightening equipment, suitable for small and medium-sized vehicle maintenance scenarios) |
| Product Type | Hydraulic frame straightener with high-strength clamps and traction arms |
| Rated Capacity | 10 Ton (approx. 22,046 LBS, maximum traction force up to 100kN) |
| Net Weight (N.W.) | 170 kg (High-strength steel construction, requires 4 people or forklift for movement) |
| Gross Weight (G.W.) | 200 kg (Including packaging and accessories) |
| Package Size | 3040*400*330 mm (50 units per 20-foot container) |
| Core Configuration |
|
| Compatible Vehicle Types | Sedans, SUVs, small trucks with wheelbase ≤3.5m |
| Accuracy Standard | Dimensional error after straightening ≤0.5mm |
| Operating Environment | -10℃~40℃ working temperature, ≤85% humidity |
| Test Item | Test Condition | Test Result |
|---|---|---|
| Tension Stability | Continuous 10-ton tension for 30 minutes | No leakage, tension fluctuation ≤0.5kN |
| Dimensional Accuracy | Straightening of 5mm bent sedan longitudinal beam | Straightness error 0.3mm |
| Clamp Reliability | Clamping 50mm steel plate with 8kN tension | No slippage or deformation |
| Equipment Stability | Operation on 15° inclined ground | No displacement, safe operation |
- Main body welded with Q345 high-strength steel plates (tensile strength ≥345MPa)
- Integrally forged 45# seamless steel pipe hydraulic cylinder with high-frequency quenching
- 30MPa working pressure with "micro-speed stretching" (minimum 0.5mm/s)
- Pressure overload protection automatically relieves pressure above 10-ton rating
- 3 sets of adjustable traction arms (1.2-2.5m length, 360° rotation)
- 6 sets of universal clamps (0-50mm adjustable thickness)
- Scale marking (1mm accuracy) and dial indicator for real-time monitoring
- Anti-slip base design for stability on uneven floors
- Simple manual hydraulic valve control (two-step operation)
- Lightweight hollow steel pipe traction arms (30% lighter than solid arms)
- Compact packaging (50 units per 20-foot container)
- 80μm spray coating with ≥72 hours salt spray resistance
Scenario: Toyota Camry with 3mm bent front longitudinal beam
Process:
- 1.5 hour operation time (1 hour faster than traditional methods)
- Final straightness error: 0.1mm
- 40% increased maintenance profit per vehicle
Scenario: Honda CR-V with 2mm offset middle longitudinal beam
Process:
- "Diagonal stretching" method with 0.8mm/s speed
- Final offset: 0.3mm with intact original coating
- Improved customer satisfaction and shop reputation
Scenario: Wuling Rongguang with overload-bent rear crossbeam
Process:
- 8-ton tension at 1.2mm/s speed
- Final bending: 0.4mm (from initial 4mm)
- 600 yuan cost savings vs replacement
- Adjust traction arm length (1.2-2.5m range)
- Rotate arm 360° to avoid obstacles
- Reposition clamp outward 5-10cm if needed
- Check/replace aging hydraulic oil seals
- Re-calibrate pressure valve to 11 tons threshold
- Replenish 46# anti-wear hydraulic oil
- Vehicle weight ≤2.5 tons
- Steel frame material (not aluminum alloy)
- Deformation within 1.2-2.5m traction arm range
- Minor rust: Polish with 1000-grit sandpaper and respray
- Severe rust: Grind, weld reinforcement, then repaint
- Preventive: Regular cleaning, lubrication, and dry storage
Product Highlights
YD42-001 Frame Straightener: 10 Ton, ≤0.5mm Accuracy, for Sedan/SUV/Truck Repair Shops Product Specifications Parameter Category Specific Specification Model No. YD42-001 (Professional-grade frame straightening equipment, suitable for small and medium-sized vehicle maintenance scenarios) Product ...
