1500kg CE EV Battery Lifting Table 2100mm Max Height For Auto Repair Shops EV Battery Maintenance

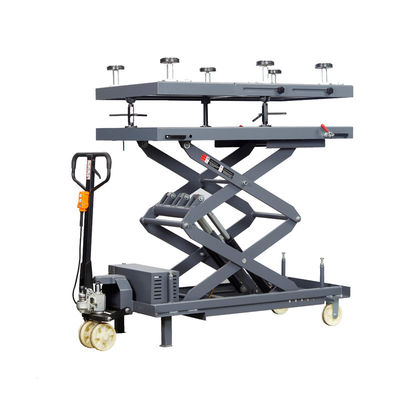

Large Image : 1500kg CE EV Battery Lifting Table 2100mm Max Height For Auto Repair Shops EV Battery Maintenance

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD88-001

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Highlight:

1500kg ev battery lifting table

2100mm ev battery lifting table

CE ev battery lifting table

EV Battery Pack Scissor Mobile Lifting Table

Product Specifications

Model No.: YD88 - 001
Lifting Capacity: 1500kg
Max. Lifting Height: 2100mm
Min. Height: 800mm
Platform Length: 1500 - 1800mm
Platform Width: 800mm
Voltage: 220V
Lifting Time: ≤55S
Frequency: 50HZ
Net Weight: 500KG

Product Details

This EV Battery Pack Scissor Mobile Lifting Table is a specialized tool designed for the disassembly and fixing of electric vehicle (EV) battery packs. It is also suitable for handling engine, gearbox, drive axle, fuel tank, suspension, and chassis components of traditional vehicles.

The working table can be tilted by adjusting two independent screws with T - shape handles, allowing for flexible positioning. It can be extended to a length of 1800mm, expanding its range of applications. A larger base frame ensures better stability and reliability during operation. Control is convenient with a hand - held button that features a stop function, and there is an electrically released mechanical locking system for safety.

Application Scenarios

It is ideal for use in automotive repair shops and garages. For EV maintenance, it facilitates the safe handling and repair of battery packs. In traditional vehicle repair, it assists with the installation and removal of heavy components like engines and gearboxes, making these tasks more efficient and less labor - intensive.

Frequently Asked Questions

Q: What is the maximum weight this lifting table can handle?

A: The lifting capacity of this table is 1500kg, which is suitable for most EV battery packs and heavy vehicle components.
Q: How long does it take to lift to the maximum height?

A: The lifting time to the maximum height (2100mm) is ≤55 seconds, ensuring quick and efficient operation.
Q: Can the working table be adjusted for different angles?

A: Yes, the working table can be tilted by adjusting two independent screws with T - shape handles to achieve different angles.
Q: Is the lifting table easy to move?

A: As a mobile lifting table, it is designed for mobility, making it convenient to move around in workshops and garages.
