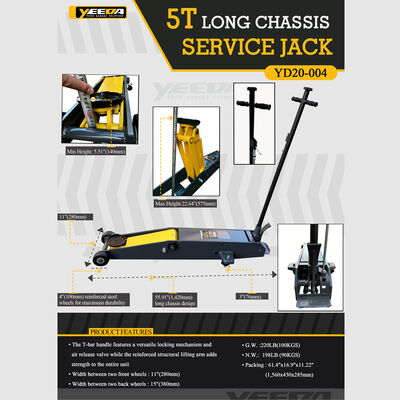

5T Long Chassis Service Jack, 22.64" Lifting Height for Auto Repair/Industrial Lifting

Large Image : 5T Long Chassis Service Jack, 22.64" Lifting Height for Auto Repair/Industrial Lifting

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD20-004

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Highlight:

5T long chassis service jack

22.64 inch lifting height jack

industrial lifting hydraulic jack

5T Long Chassis Service Jack - 22.64" Lifting Height for Auto Repair & Industrial Lifting

Product Specifications

Minimum Height	5.51" (140mm)
Maximum Height	22.64" (575mm)
Long Chassis Design	55.91" (1,420mm) length for extended reach
Wheel Width (Front)	11" (280mm)
Wheel Width (Rear)	15" (380mm)
Wheel Diameter	4" (100mm) reinforced steel wheels
Saddle Thickness	3" (76mm) for stable lifting
Gross Weight	220LB (100KGS)
Net Weight	198LB (90KGS)
Packing Dimensions	61.4"×16.9"×11.22" (1,560×430×285mm)

Product Details

The YEEDA 5T Long Chassis Service Jack (Model YD20 - 004) is engineered for heavy-duty automotive and industrial lifting tasks. Its reinforced steel frame and 4" durable wheels ensure long-lasting performance and smooth mobility. The T-bar handle features a versatile locking mechanism and an air release valve for precise control, while the 3" thick saddle provides stable support. With a maximum lifting height of 22.64" (575mm) and a long 55.91" (1,420mm) chassis, it easily accommodates low-ground or extended-reach lifting needs. The compact packing size (61.4"×16.9"×11.22") makes it convenient to transport and store.

Application Scenarios

Automotive repair shops: For lifting vehicles during maintenance, tire changes, or engine repairs
Industrial facilities: To lift heavy machinery or equipment for inspection, maintenance, or relocation
Home garages: Ideal for DIY car repairs, such as changing tires or performing basic maintenance

Frequently Asked Questions

What is the lifting range of this service jack?

It can lift from a minimum height of 5.51" (140mm) to a maximum height of 22.64" (575mm).

Are the wheels durable?

Yes, the 4" (100mm) reinforced steel wheels are designed for maximum durability, ensuring smooth movement even on rough surfaces.

How does the locking mechanism on the handle work?

The T-bar handle's locking mechanism allows you to secure the handle in place for stable operation, and the air release valve enables controlled lowering of the load.

What is the weight capacity?

This 5T long chassis service jack has a rated lifting capacity of 5 tons (11,023 lbs), suitable for most automotive and light industrial lifting tasks.
