3 Ton Triple Bag Air Jack YD21-023A-B Pneumatic Air Bag Lift with Long/Short Handle

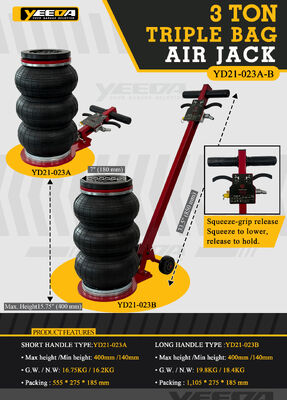

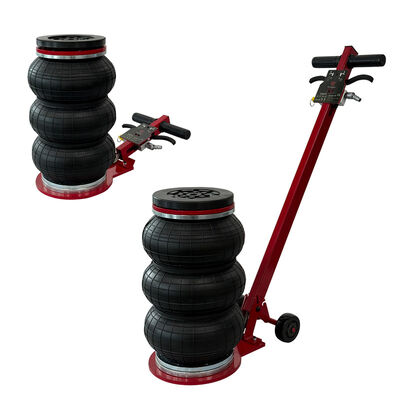

This 3 ton triple bag air jack is a pneumatic lifting tool for vehicle service. Model YD21-023A-B is available as a short handle type YD21-023A and a long handle type YD21-023B. Both share the same lifting range: max height 15.75" / 400mm, min height 140mm. The long handle measures 33.5" / 850mm, while the short handle version shows a 7" / 180mm reference. The squeeze-grip release lets the user squeeze to lower and release to hold.
Product weights and packing: YD21-023A G.W. 16.75KG / N.W. 16.2KG, packing 555 x 275 x 185mm. YD21-023B G.W. 19.8KG / N.W. 18.4KG, packing 1,105 x 275 x 185mm.
Product Parameters
| Item |
YD21-023A (Short Handle) |
YD21-023B (Long Handle) |
| Model |
YD21-023A |
YD21-023B |
| Product Name |
3 Ton Triple Bag Air Jack |
3 Ton Triple Bag Air Jack |
| Capacity |
3 Ton |
3 Ton |
| Max Height |
15.75" / 400mm |
15.75" / 400mm |
| Min Height |
140mm |
140mm |
| Handle / Reference |
Short Handle, 7" / 180mm |
Long Handle, 33.5" / 850mm |
| Release Control |
Squeeze-Grip Release |
Squeeze-Grip Release |
| G.W. |
16.75KG |
19.8KG |
| N.W. |
16.2KG |
18.4KG |
| Packing Size |
555 x 275 x 185mm |
1,105 x 275 x 185mm |
Key Features
- 3 ton triple bag air jack for pneumatic vehicle lifting
- Available in short handle YD21-023A and long handle YD21-023B
- Max height 15.75" / 400mm, min height 140mm
- Squeeze-grip release: squeeze to lower, release to hold
- Triple bag air lift design
- Long handle 33.5" / 850mm; short handle reference 7" / 180mm
- Suitable for garage/workshop air jack use
Application
This 3 ton triple bag air jack is suitable for garages and workshops when lifting vehicles using compressed air. The triple bag design, handle options, and squeeze-grip control help with controlled lifting and lowering during service work.
Product Questions and Answers
What is the model and capacity?
YD21-023A-B, 3 ton capacity.
What types are shown?
Short handle type YD21-023A and long handle type YD21-023B.
What is the lift range?
Max height 15.75" / 400mm, min height 140mm.
How does the release work?
Squeeze-grip release: squeeze to lower, release to hold.
What are the handle details?
Long handle 33.5" / 850mm on YD21-023B; short handle reference 7" / 180mm on YD21-023A.
What are the weights and packing sizes?
YD21-023A: G.W. 16.75KG, N.W. 16.2KG, packing 555 x 275 x 185mm. YD21-023B: G.W. 19.8KG, N.W. 18.4KG, packing 1,105 x 275 x 185mm.
Where is it used?
Garages and workshops for pneumatic vehicle lifting/service.
