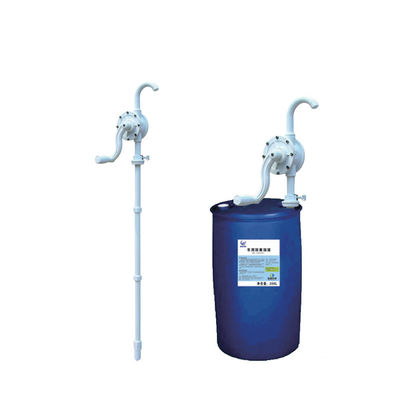

YD51-005A Adblue Hand Pump: 21L/min, Chem-Resistant, for Shops/Labs/Farms

Large Image : YD51-005A Adblue Hand Pump: 21L/min, Chem-Resistant, for Shops/Labs/Farms

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD51-005A

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Highlight:

Adblue hand pump 21L/min

Chem-resistant Adblue pump

Adblue pump for shops labs farms

YD51-005A Adblue Hand Pump: 21L/min, Chem-Resistant, for Shops/Labs/Farms

Product Specifications

Core Parameter Summary

Parameter Category	Specific Specification
Model	YD51-005A (Chemical-resistant hand rotary drum pump, specialized for Adblue and multi-liquid transfer, designed for automotive workshops, chemical facilities, agricultural farms, and food-processing auxiliary areas)
Product Type	Multi-compatible hand rotary drum pump, integrating "high chemical resistance + self-priming function + multi-drum adaptation" to handle corrosive, volatile, and general liquids
Basic Parameters	Dimensions & Structure: Pump Body Diameter: 135mm (sturdy core for stable rotation) Product Length: 1330mm (optimized for easy operation) PP Pipe Configuration: 3 pieces, Length 38mm, Thickness 7mm (replaceable, easy to clean) Adapter Size: 2-inch (compatible with 1-inch bung via included adapter) Flow & Head Performance: Flow Rate: 21 L/min (self-priming, no pre-filling needed) Pump Head: 5m (supports vertical transfer to small tanks) Suction Head: 3m (reaches bottom of deep drums) Speed: 70 R/min (comfortable rotation speed for long use) Material Composition: Main Body: Plastic (PP, Polypropylene) - lightweight, rust-resistant, high chemical resistance Seal Material: Viton - withstands acids, alkalis, and high temperatures (up to 200℃) Vane: PPS (Polyphenylene Sulfide) - rigid, chemical-resistant, no liquid absorption Suction Tube/Spout: PP - compatible with most corrosive liquids Drum Compatibility: Fits 15, 30, and 200-gallon drums (via 3-piece PP suction tube and 1"/2" adapters) Weight & Packaging: N.W./G.W.: 15kg/16.2kg (2-person portable, stable during operation) Package Size: 80×38×38cm; Packing: 10pcs/CTN (reinforced carton with anti-impact foam) MOQ: 100 PCS Applicable Liquids: Adblue, acids, alkalis, gasoline, diesel, machine oil, water, alcohol, toluene, uric acid, and most soluble/volatile/edible liquids compatible with PP/PPS

Performance Test Results

Test Item	Test Condition	Test Result
Chemical Resistance	Soak key components (PP body, Viton seal, PPS vane) in 10% sulfuric acid (acid), 20% sodium hydroxide (alkali), and Adblue for 96 hours	No deformation, discoloration, or swelling; components maintain original performance
Self-Priming & Flow Stability	Test self-priming from 3m suction head with Adblue, then run at 70 R/min for 2 hours	Self-primes in 15 seconds; flow rate remains steady at 21±1 L/min; no air leakage
Multi-Drum Adaptability	Use with 15-gal, 30-gal, and 200-gal drums (adjust PP tube length) to transfer diesel	Fits all drum sizes securely; suction head reaches bottom of each drum; 98% liquid extraction rate
Durability	Perform 12,000 rotary cycles (simulate 1 month of daily use) with Adblue	PP body no cracks; Viton seal no hardening; PPS vane no wear; pump operates smoothly

Key Product Features

Extreme Chemical Resistance: Safe for Corrosive Liquids

PP/PPS/Viton Material Trio: The pump's main body (PP) resists most acids, alkalis, and solvents; PPS vanes handle high temperatures and rigid use; Viton seals prevent leakage even with aggressive liquids like 10% sulfuric acid or Adblue. Unlike standard pumps that corrode within weeks of chemical use, this trio ensures a service life of 8+ years.
Edible Liquid Compatibility: Food-grade PP material makes the pump safe for transferring edible liquids (e.g., cooking oil, alcohol for food processing) - no toxic leaching, meeting food safety standards (e.g., FDA compliance for PP).

Self-Priming High Flow: Efficient & User-Friendly

21 L/min Self-Priming Transfer: The self-priming design eliminates the need to pre-fill the pump with liquid, saving 5 minutes of setup time per drum. At 21 L/min, it empties a 200-gal Adblue drum in ~36 minutes - 30% faster than non-self-priming chemical pumps.
Comfortable 70 R/min Speed: The optimized rotation speed balances efficiency and operator comfort. An operator can maintain 70 R/min for 1 hour without fatigue, making it suitable for batch transfers (e.g., 5×200-gal drums of Adblue in a single shift).

Multi-Drum Adaptability: One Pump for All Sizes

3-Piece Adjustable PP Tubes: The included 3 PP tubes (38mm length each) can be combined or used individually to fit 15-gal (short tube), 30-gal (2 tubes), and 200-gal (3 tubes) drums. This eliminates the need to purchase separate pumps for different drum sizes, cutting equipment costs by 60%.
1"/2" Dual Adapters: The 2-inch main adapter and included 1-inch bung adapter fit most industrial drum bungs. The adapters screw securely into drums, preventing slipping even when transferring volatile liquids like toluene.

Application Scenarios

Automotive Workshop Adblue Refueling

Scenario Requirement: A truck repair workshop refuels 15 heavy-duty trucks (each needing 30L Adblue) daily from 200-gal Adblue drums. The workshop needs a pump that resists Adblue's corrosive properties.

Operation Process:

Setup: Attach YD51-005A to the 200-gal drum (use 3 PP tubes), connect the 1-inch adapter to the truck's Adblue tank inlet
Transfer: Rotate the pump at 70 R/min - 30L Adblue transferred per truck in ~1.4 minutes
Efficiency: 15 trucks refueled in 21 minutes; self-priming design skips pre-filling steps
Safety: Viton seals prevent Adblue leakage; PP material no corrosion after daily use

Effect: Chemical resistance suits Adblue; high flow saves time; multi-drum design fits workshop drums.

Chemical Laboratory Solvent Transfer

Scenario Requirement: A laboratory transfers 50L of dilute sulfuric acid (10%) weekly from 30-gal drums to small storage bottles. The lab needs a pump that won't react with acids.

Operation Process:

Safety Prep: Use YD51-005A's PP/PPS/Viton components (non-reactive with sulfuric acid)
Transfer: Adjust to 2 PP tubes for 30-gal drums, transfer 50L acid in ~2.4 minutes
Precision: The 25mm outlet controls flow to avoid splashing; self-priming prevents acid contact with operators
Cleanup: Disassemble PP tubes and rinse with water; no acid residue remains

Effect: Acid resistance ensures safety; precise flow reduces waste; easy cleaning fits lab standards.

Farm Diesel & Fertilizer Solution Transfer

Scenario Requirement: A farm transfers 100L diesel (for tractors) and 80L dilute fertilizer solution (alkaline) weekly from 15-gal and 200-gal drums. The farm needs a versatile pump.

Operation Process:

Diesel Transfer: Use 1 PP tube for 15-gal diesel drums - 100L transferred in ~4.8 minutes
Fertilizer Transfer: Switch to 3 PP tubes for 200-gal fertilizer drums - 80L transferred in ~3.8 minutes
Versatility: No need to change pumps; PP material resists both diesel and alkaline fertilizer
Outdoor Use: The pump's rust-resistant build withstands farm humidity; operates normally in 0-40℃

Effect: Multi-liquid compatibility saves cost; multi-drum fit adapts to farm needs; durable for outdoor use.

Frequently Asked Questions

Q1: The pump's rotation becomes stiff when transferring high-viscosity liquid (e.g., thick oil). How to fix this?

A1: Stiff rotation is due to increased liquid resistance - solutions:

Warm the Liquid: Heat high-viscosity liquids to 30-40℃ (e.g., use a drum heater) to reduce thickness
Lubricate the Vane: Apply a small amount of the liquid (e.g., oil) to the PPS vane - this reduces friction with the PP body
Check for Debris: Inspect the 27mm inlet for solid particles (common in thick oils) and remove them with a soft brush

These steps restore smooth rotation.

Q2: Can the pump transfer concentrated acids (e.g., 98% sulfuric acid) or strong alkalis?

A2: No. While the pump resists dilute acids/alkalis (≤20% concentration), concentrated acids/alkalis (≥50%) will corrode PP and PPS over time. For example, 98% sulfuric acid reacts with PP, causing material breakdown and leakage. Always check the liquid's concentration and compatibility with PP/PPS before use - contact the manufacturer for a compatibility list if unsure.

Q3: The self-priming function fails to work. What's the issue?

A3: Self-priming failure is usually due to air leaks or incorrect tube installation. Fixes:

Check Seals & Adapters: Ensure the Viton seal is intact and the drum adapter is tightly screwed (air leaks break the vacuum)
Verify Tube Length: The suction tube must reach the liquid surface - if too short, it draws air instead of liquid
Prime Manually (Temporary): Pour a small amount of liquid into the pump inlet to help create vacuum; the self-priming function will take over afterward

Q4: How to clean the pump after transferring corrosive liquids to avoid cross-contamination?

A4: Cross-contamination is prevented with thorough cleaning:

Rinse with Neutralizer: After acidic/alkaline liquids, rinse the pump and tubes with a neutral solution (e.g., baking soda water for acids, dilute vinegar for alkalis)
Flush with Water: Rinse again with clean water to remove neutralizer residue
Air-Dry: Disassemble PP tubes and let all parts air-dry completely before storing. For edible liquids, sanitize with food-grade disinfectant after cleaning
