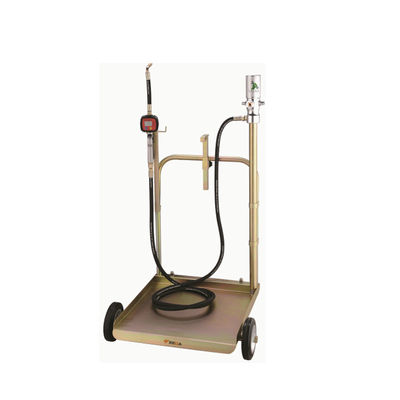

YEEDA YD51-013A 220KG Trolley Oil Dispenser: 18L/Min, ±0.5%, for Warehouses/Workshops/Logistic
Product Specifications
| Component Category |
Specific Specification |
| Brand & Model |
YEEDA YD51-013A (180-220KGS Trolley-Mounted 3:1 Oil Dispenser Kit, designed for large-drum medium-viscosity oil dispensing, ideal for industrial warehouses, heavy-duty workshops, and logistics centers) |
| Product Type |
Integrated system: Air-Operated Oil Pump + Heavy-Duty Modular Trolley + Dispensing Hose + Digital Meter |
| Air-Operated Oil Pump |
- Compression Ratio: 3:1 (optimized for medium-viscosity oil, e.g., SAE130)
- Connections: Air Inlet (F1/4"G), Oil Out (M1/2"G)
- Pressure Ratings: Working Pressure (8 Bar), Max. Flow Pressure (24 Bar)
- Performance Metrics: Air Consumption (100 L/Min), Relative Capacity (18 L/Min), Suction Tube Diameter (42mm)
- Applicable Oils: Motor oil, hydraulic oil, gear oil, synthetic oil (up to SAE130 viscosity)
|
| Heavy-Duty Modular Trolley |
- Load Capacity: 180-220KGS (fits standard and irregular-shaped 220KGS trade drums)
- Mobility: 2 high-quality fixed wheels + 2 casters (smooth maneuvering on concrete/warehouse floors)
- Structural Features: Pump support bracket + drum clamping device (secures large drums/pump to prevent tipping)
- Finish: Zinc-plated (anti-rust, corrosion-resistant to oil and humid environments)
- Frame: Reinforced steel (maintains shape without deformation under 220KGS load)
|
| Dispensing Hose |
- Length: 4m (enables long-distance dispensing without repositioning the heavy trolley)
- Inner Diameter (ID): 1/2" (ensures unobstructed flow for high-volume transfer)
- Material: SAE 10R2AT (oil-resistant, wear-resistant, durable for frequent heavy use)
- Working Pressure: 138 Bar (withstands high-pressure output from the pump)
- Connections: Inlet/Outlet (1/2") (compatible with pump and digital meter)
|
| Digital Meter |
- Flow Range: 1-25 L/Min (matches the pump's 18 L/Min relative capacity)
- Accuracy: ±0.5% (precise for large-volume oil inventory tracking and customer billing)
- Pressure Limits: Minimum Working Pressure (5 Bar), Maximum Working Pressure (100 Bar)
- Temperature Adaptability: -20℃ ~ +60℃ (works in cold warehouses and warm workshop environments)
- Oil Inlet Thread: 1/2 Bsp/NPSM (compatible with the hose outlet)
|
Performance Test Results
| Test Item |
Test Condition |
Test Result |
| Large-Drum Transfer Efficiency |
Transfer oil from a 220KGS drum (≈280L) at the pump's rated 18 L/Min capacity |
Empties the drum in ~15.6 minutes; no flow drop or pump strain; suction tube extracts 97% of oil (residual ≤8L) |
| Dispensing Accuracy |
Dispense 20L, 30L, and 50L of hydraulic oil (SAE100) using the digital meter |
Measured volumes: 20.01L, 30.02L, 50.03L--all within the ±0.5% accuracy range |
| Trolley Stability & Mobility |
Move the trolley (loaded with a 220KGS drum) across 100m of concrete warehouse floors |
Trolley maneuvers smoothly via casters; fixed wheels maintain straight-line movement; drum remains fully secured by the clamping device (no tipping or shifting) |
| Durability Under Pressure |
Operate the pump at max flow pressure (24 Bar) for 3 hours with gear oil (SAE130) |
Hose shows no swelling, cracking, or leakage; pump components (compression parts, connections) remain intact; trolley frame retains structural stability |
Product Details
The YEEDA YD51-013A Trolley-Mounted 3:1 Oil Dispenser Kit addresses the unique challenges of large-drum oil handling: "cumbersome mobility of heavy drums, low transfer efficiency, and inaccurate volume measurement". With 220KGS heavy-duty trolley + 18 L/Min high-flow pump + ±0.5% precision digital meter as its core strengths, it redefines efficiency for high-volume oil dispensing in industrial settings:
Heavy-Duty Trolley: Stability Meets Mobility
- 220KGS Load Capacity & Zinc Plating: Unlike standard 60KGS trolleys, this reinforced trolley handles full-size 180-220KGS drums, eliminating the need for frequent small-drum replacements. The zinc-plated finish resists rust and oil stains, ensuring longevity even in humid workshops or outdoor storage areas.
- Secure & Maneuverable Design: The drum clamping device locks large drums in place to prevent tipping--a critical safety feature when moving heavy loads. The 2 fixed wheels and 2 high-quality casters enable easy movement across warehouse floors, saving 50% of labor time compared to manual drum handling or forklift reliance.
3:1 Air-Operated Pump: Efficient Medium-Viscosity Transfer
- 18 L/Min Rapid Flow: The 3:1 compression ratio pump delivers consistent high flow, emptying a 220KGS drum in ~15.6 minutes--3x faster than manual pumps. This efficiency is essential for workshops or warehouses with high daily refueling demands.
- Reliable Suction & Compatibility: The 42mm diameter suction tube reaches the bottom of large drums, minimizing residual oil waste. The pump's design is optimized for medium-viscosity oils (up to SAE130), making it ideal for hydraulic systems, industrial gearboxes, and heavy machinery.
Precise Digital Meter & Durable Hose
- ± 0.5% Accuracy for Cost Control: The digital meter eliminates guesswork in high-volume dispensing, ensuring precise inventory tracking and accurate customer billing. It avoids over-dispensing, which can waste oil and increase operational costs.
- SAE 10R2AT 4m Hose: The oil-resistant, 138 Bar pressure-rated hose supports long-distance dispensing without repositioning the heavy trolley. Its 1/2" inner diameter ensures unobstructed flow, matching the pump's high-volume output for seamless operation.
Application Scenarios
Industrial Warehouse Forklift Refueling
Scenario Requirement: A manufacturing warehouse maintains 10 electric forklifts (each needing 40L hydraulic oil, SAE100) daily, using 220KGS oil drums. The warehouse requires a mobile solution to refuel forklifts parked in different bays without forklift assistance.
Operation Process:
- Setup: Secure a 220KGS hydraulic oil drum to the YD51-013A trolley using the clamping device; connect the pump's F1/4"G air inlet to the warehouse's air compressor; attach the 4m hose and digital meter
- Dispensing: Move the trolley to each forklift bay; extend the 4m hose to the forklift's oil inlet; use the digital meter to set a 40L dispense volume--oil is transferred in ~2.2 minutes per forklift
- Efficiency: 10 forklifts are refueled in ~22 minutes; the trolley's mobility eliminates the need to move heavy drums with a forklift
- Accuracy: The digital meter logs each dispense, simplifying end-of-day inventory checks
Effect: Heavy-duty trolley handles large drums; high flow meets daily refueling demands; mobile design optimizes warehouse workflow.
Logistics Center Truck Fleet Maintenance
Scenario Requirement: A logistics center services 15 delivery trucks (each needing 35L motor oil, SAE50) weekly, using 220KGS drums. The center needs accurate measurement to track oil usage per truck and control maintenance costs.
Operation Process:
- Setup: Position the YD51-013A trolley near the maintenance area; connect the pump to the center's 8 Bar air supply
- Dispensing: Use the digital meter to dispense 35L of motor oil per truck--transfer takes ~1.9 minutes per vehicle; the meter's ±0.5% accuracy ensures no overfilling
- Cost Tracking: Log the meter's reading for each truck to identify vehicles with excessive oil consumption
- Convenience: The 4m hose reaches truck oil tanks easily, and the trolley's casters roll smoothly across the center's concrete yard
Effect: Precise meter simplifies cost tracking; mobile design fits maintenance workflows; durable build withstands frequent use.
Heavy-Duty Workshop Gear Oil Replacement
Scenario Requirement: A workshop specializes in industrial gearbox maintenance and replaces gear oil for 8 large gearboxes (each needing 60L gear oil, SAE130) monthly, using 220KGS drums. The medium-viscosity oil requires a powerful pump to avoid clogging.
Operation Process:
- Setup: Mount the pump on the trolley's support bracket; connect the suction tube to the 220KGS gear oil drum; attach the hose to the gearbox's oil inlet
- Dispensing: Operate the pump at 8 Bar working pressure--60L of SAE130 oil is transferred in ~3.3 minutes per gearbox; the pump's 3:1 ratio ensures smooth flow without clogging
- Durability: The trolley's zinc-plated finish resists oil stains and workshop dust; the hose (SAE 10R2AT) handles the pump's 24 Bar max pressure without leakage
- Completion: All 8 gearboxes are serviced in ~26.4 minutes--half the time required with smaller, less powerful pumps
Effect: 3:1 pump handles medium-viscosity oil; heavy-duty design suits workshop use; efficient flow reduces maintenance time.
Frequently Asked Questions
Q1: The trolley is difficult to move when loaded with a 220KGS drum. How can I improve its mobility?
A1: Reduced mobility is typically caused by wheel obstruction or insufficient lubrication. Solutions:
- Clean Wheels and Casters: Remove oil residue, dust, or debris from the wheel axles and caster bearings--buildup increases friction
- Check Floor Conditions: Ensure the floor is free of cracks, bumps, or loose debris; use a rubber floor mat in rough areas to create a smoother surface
- Lubricate Moving Parts: Apply heavy-duty, oil-resistant lubricant to the wheel bearings and caster joints quarterly. These steps will restore smooth mobility
Q2: Can the pump handle oil with a viscosity higher than SAE130 (e.g., SAE140)?
A2: No. The pump's 3:1 compression ratio is specifically optimized for SAE130 or lower viscosity oils. Using SAE140+ oil will result in:
- Reduced Flow Rate: The pump may only deliver 10-12 L/Min (40% lower than its rated capacity)
- Increased Pump Wear: High viscosity forces the pump's compression components to work harder, shortening its service life by up to 50%
- Clogging Risk: Thick oil can block the 42mm suction tube or M1/2"G oil outlet. For oils with viscosity higher than SAE130, use a YEEDA kit with a 5:1 compression ratio pump (e.g., YD51-013B)
Q3: The digital meter's reading does not match the actual volume of oil dispensed. How do I calibrate it?
A3: Calibrate the meter using a certified volume container for accuracy:
- Obtain a Certified Container: Use a 50L container with a verified volume (traceable to national or industrial standards)
- Dispense Oil: Use the digital meter to dispense 50L of oil into the certified container
- Adjust Calibration: If the meter reads 50.25L (exceeding the ±0.5% error limit), locate the calibration screw on the meter (refer to the user manual) and turn it slightly to lower the reading until it matches the container's 50L volume. Repeat this process until the meter's accuracy falls within the ±0.5% range
Q4: How do I maintain the trolley's zinc-plated finish to prevent rust?
A4: Protect the zinc-plated surface with these simple maintenance steps:
- Post-Use Cleaning: After each use, wipe the trolley frame with a clean, dry cloth to remove oil residue--oil traps moisture, which accelerates rusting
- Inspect for Damage: Regularly check the finish for scratches or chips; touch up small damaged areas with zinc-rich spray paint to prevent exposed steel from rusting
- Proper Storage: Store the trolley in a dry, well-ventilated area--avoid storing it outdoors or near water sources (e.g., sinks, pressure washers)
- Annual Maintenance: Once a year, apply a thin layer of anti-rust oil to the frame to reinforce the zinc plating and extend its lifespan
