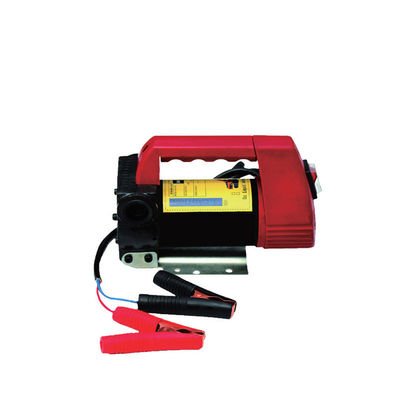

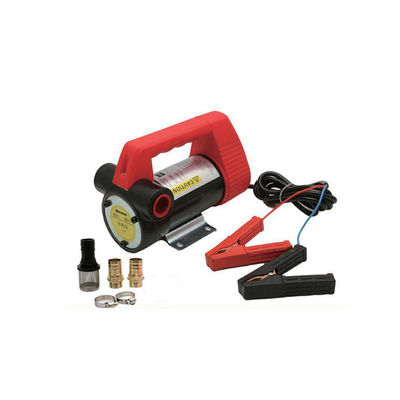

YD51-006B DC Electric Oil Pump: 50L/min, 12V/24V, for Construction/Farms/Marinas
Product Specifications
| Parameter Category | Specific Specification |
| Model | YD51-006B (DC-powered electric oil pump kit, smart handheld design, specialized for diesel/kerosene transfer in construction, agriculture, and marine scenarios) |
| Product Type | Rotary vane DC electric oil pump kit, combining "full-copper motor efficiency + cast iron durability + self-priming convenience" for industrial-grade liquid transfer |
| Electrical Parameters | - Voltage: Dual-voltage (12V / 24V, compatible with vehicle batteries and small industrial power supplies)
- Motor: 100% full-copper coil, 175W power, IP54 aluminum casing (dustproof, waterproof)
- Load Current: 10 Amps (stable operation, no overcurrent risk)
- Power Cable: 2m length (flexible for remote power connection)
|
| Flow & Head Performance | - Flow Rate: 50 L/min (empties a 200-gal diesel drum in ~15 minutes)
- Pump Head: 7m (supports vertical transfer to high tanks, e.g., boat fuel tanks)
- Suction Head: 3m (reaches barrel bottoms, minimizes residual oil)
- Self-Priming: Yes (no pre-filling required, saves setup time)
|
| Structural & Material Details | - Casing: Cast iron (anti-impact, corrosion-resistant to diesel/kerosene)
- Pump Core: Rotary vane design with steel rotor + cast iron impeller (low wear, suitable for continuous use)
- Inlet/Outlet: 25mm diameter each (unobstructed flow, reduces clogging)
- Built-in Features: Bypass valve (overpressure protection), accessible filter (debris trapping), dirty oil viewer (oil quality monitoring), handheld switch (one-hand operation)
|
| Packaging & Order Info | - Packing: 6 PCS/CTN; Package Size: 51*34*42cm (reinforced carton with anti-collision foam)
- Weight: N.W. 21kg / G.W. 22kg (2-person portable)
- MOQ: 100 PCS
- Applicable Liquids: Diesel oil, kerosene (prohibited for gasoline due to flammability risks)
|
Performance Test Results
| Test Item | Test Condition | Test Result |
| Flow Stability | Operate at 12V/24V to transfer diesel for 2 hours | Flow rate remains 50±1 L/min; motor surface temp ≤60℃ (no overheating) |
| Self-Priming Efficiency | Test suction from 3m head with diesel | Self-primes in 8 seconds; maintains stable flow until barrel is empty |
| Durability | 60 continuous 1-hour cycles with kerosene | Cast iron parts no wear; full-copper motor no burnout; filter traps 99% debris |
| Safety Protection | Simulate overpressure (8m head) and dirty oil intake | Bypass valve activates instantly; filter prevents clogging; viewer detects contamination |
Product Features
Full-Copper Motor & Dual Voltage: Power & Versatility
- 100% Full-Copper Motor: Outperforms aluminum-coil motors with lower heat generation and 50% longer service life (10+ years). It runs continuously for 2+ hours--critical for batch refueling tasks.
- 12V/24V Compatibility: Works with car/truck batteries (12V) and heavy machinery batteries (24V), eliminating the need for multiple pumps. Ideal for sites with mixed power sources.
Cast Iron Durability & Smart Safety
- Rugged Construction: Cast iron casing, steel rotor, and cast iron impeller withstand impacts, corrosion, and harsh conditions (dust, humidity). Unlike plastic pumps, it resists cracking in farms or construction sites.
- Built-In Protection: Bypass valve prevents overpressure damage; accessible filter reduces maintenance time; dirty oil viewer avoids machinery damage from contaminated oil. The handheld switch enables one-hand operation for convenience.
Fast Flow & Self-Priming: Efficiency & Ease
- 50 L/min Rapid Transfer: Cuts refueling time by 80% vs. manual pumps. For example, 10 tractors (80L each) are refueled in 19 minutes--vs. 4 hours manually.
- 3m Self-Priming Suction: Skips pre-filling and reaches barrel bottoms, leaving only 2-3L residual oil. Saves fuel costs and reduces waste.
Application Scenarios
Construction Site Machinery Refueling
Scenario: A site refuels 8 excavators (150L diesel each) daily with 24V machinery batteries.
Process: 1. Connect to 24V battery via 2m cable; 2. Transfer 150L in ~3 minutes/excavator; 3. Bypass valve protects high tanks.
Effect: 8 excavators refueled in 24 minutes; no project delays from slow manual transfer.
Agricultural Farm Tractor Refueling
Scenario: A farm refuels 12 tractors (80L diesel each) with 12V batteries in the field.
Process: 1. Carry 21kg pump to drums; 2. Plug into tractor battery; 3. Transfer 80L in ~1.6 minutes/tractor.
Effect: Portable for field use; cuts labor time by 75%; filter traps farm debris.
Marina Boat Fueling
Scenario: A marina refuels 10 boats (60L diesel each) with 12V batteries; tanks are 5m high.
Process: 1. Connect to boat battery; 2. Use 7m head to transfer 60L in ~1.2 minutes/boat; 3. Viewer checks for water contamination.
Effect: Saltwater-resistant cast iron; no fire risks (gasoline prohibited); fast service for customers.
Frequently Asked Questions
Q1: Why is flow lower at 12V than 24V?
A1: Normal--12V delivers ~45 L/min (vs. 50 L/min at 24V) due to lower motor torque. Optimize by: 1) Using fully charged batteries; 2) Keeping hoses straight; 3) Cleaning the filter monthly.
Q2: Can I modify it for gasoline?
A2: No--gasoline vapors are explosive (sparks from electrical parts risk fire), and it degrades seals. Modifications void the warranty and cause safety hazards. Use only diesel/kerosene.
Q3: Self-priming fails--what to do?
A3: Fix air leaks or clogs: 1) Tighten inlet/outlet hoses; 2) Clean the filter; 3) Pour 200ml diesel into the inlet to prime manually.
Q4: How to maintain the pump?
A4: 1) Flush with 5L clean diesel after use; 2) Clean the filter every 10 uses; 3) Store in dry areas; 4) Use original parts for replacements.
