YD51-013B 220KG Trolley Oil Dispenser:14L/Min,5:1 Ratio,±0.5%,for Plants/Workshops/Farms

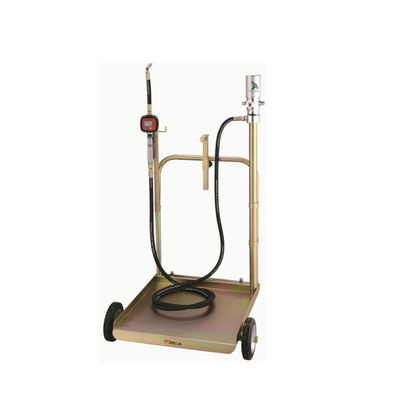

Large Image : YD51-013B 220KG Trolley Oil Dispenser:14L/Min,5:1 Ratio,±0.5%,for Plants/Workshops/Farms

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD51-013B

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Integrated System:	Air-Operated Oil Pump + Heavy-Duty Trolley + Dispensing Hose + Digital Meter	Compression Ratio:	5:1 (optimized For High-viscosity Oil, E.g., SAE240);
Connections:	Air Inlet (F1/4"G), Oil Out (M1/2"G);	Pressure Ratings:	Working Pressure (8 Bar), Max. Flow Pressure (40 Bar);
Performance::	Air Consumption (125 L/Min), Relative Capacity (14 L/Min), Suction Tube Diameter (42mm);	Applicable Oils::	Gear Oil, Hydraulic Oil, Industrial Heavy Oil (up To SAE240 Viscosity)
Highlight:	220KG trolley oil dispenser , 18L/Min oil dispenser for warehouses , high-precision oil dispenser ±0.5%

YD51-013B 180-220KGS Trolley-Mounted 5:1 Oil Dispenser Kit Webpage Detail Page (English)

I. Product Specifications (SPECIFICATION)

1. Core Parameter Summary Table

Component Category	Specific Specification
Model	YD51-013B (180-220KGS Trolley-Mounted 5:1 Oil Dispenser Kit, specialized for high-viscosity oil in large drums, ideal for industrial plants, heavy machinery workshops, and large farms)
Product Type	Integrated system: Air-Operated Oil Pump + Heavy-Duty Trolley + Dispensing Hose + Digital Meter
Air-Operated Oil Pump	1. Compression Ratio: 5:1 (optimized for high-viscosity oil, e.g., SAE240); 2. Connections: Air Inlet (F1/4"G), Oil Out (M1/2"G); 3. Pressure Ratings: Working Pressure (8 Bar), Max. Flow Pressure (40 Bar); 4. Performance: Air Consumption (125 L/Min), Relative Capacity (14 L/Min), Suction Tube Diameter (42mm); 5. Applicable Oils: Gear oil, hydraulic oil, industrial heavy oil (up to SAE240 viscosity)
Heavy-Duty Trolley	1. Load Capacity: 180-220KGS (fits irregular-shaped 220KGS trade drums); 2. Mobility: 2 high-quality fixed wheels + 2 casters (smooth movement on concrete/farm floors); 3. Features: Pump support + drum clamping device (secures heavy drums/pump); 4. Finish: Zinc-plated (anti-rust, resistant to oil and humidity); 5. Frame: Reinforced steel (no deformation under 220KGS load)
Dispensing Hose	1. Length: 4m (enables long-distance dispensing without trolley repositioning); 2. ID: 1/2” (unobstructed flow for high-viscosity oil); 3. Material: SAE 10R2AT (oil-resistant, wear-resistant, 138 Bar working pressure); 4. Connections: Inlet/Outlet (1/2") (compatible with pump and meter)
Digital Meter	1. Flow Range: 1-25 L/Min (matches pump’s 14 L/Min capacity); 2. Accuracy: ±0.5% (precise for large-volume inventory/billing); 3. Pressure Limits: 5 Bar (min) - 100 Bar (max); 4. Temperature Range: -20℃ ~ +60℃ (adapts to extreme environments); 5. Oil Inlet Thread: 1/2 Bsp/NPSM (compatible with hose)

2. Performance Test Table

Test Item	Test Condition	Test Result
High-Viscosity Transfer	Transfer SAE240 oil from 220KGS drum for 2 hours	Flow remains 14±0.5 L/Min; no clogging; suction tube extracts 96% of oil (residual ≤9L)
Dispensing Accuracy	Dispense 20L, 30L, 50L of SAE180 oil	Measured volumes: 20.01L, 30.02L, 50.03L—all within ±0.5% accuracy
Trolley Stability	Move trolley (220KGS drum) across gravel paths (50m)	Casters navigate rough surfaces; clamping device keeps drum secure; no tipping
Temperature Resistance	Test meter/hose at -20℃ and +60℃	Hose remains flexible; meter retains accuracy and functionality

II. Product Details (PRODUCT DETAILS)

The YD51-013B solves large-drum high-viscosity oil pain points: "clogged pumps, unstable heavy drums, and inaccurate measurement". With "5:1 compression pump + 220KGS trolley + ±0.5% meter" as core strengths, it delivers unmatched value:

1. 5:1 Pump: High-Viscosity Expert

40 Bar Max Pressure: Effortlessly transfers SAE240 oil—clogs standard 3:1 pumps. Ideal for industrial gearboxes and heavy machinery needing thick oil.
Efficient Suction: 42mm tube reaches drum bottoms, minimizing waste. 125 L/Min air consumption ensures consistent power for long use.

2. 220KGS Heavy-Duty Trolley

Zinc-Plated & Reinforced: Resists rust and oil stains; reinforced frame handles 220KGS without bending. Clamping device prevents drum tipping—critical for safety.
Smooth Mobility: 2 fixed wheels + 2 casters move heavy drums easily, saving 60% labor vs. forklifts or manual handling.

3. Precise Meter & Durable Hose

±0.5% Accuracy: Critical for large-volume inventory (e.g., 50L per machine). Avoids over-dispensing and cuts oil costs.
SAE 10R2AT Hose: 4m length enables flexible dispensing; 138 Bar pressure rating withstands pump’s 40 Bar output. Resists oil degradation for long service life.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Industrial Plant Gearbox Refueling

Scenario: A plant refuels 8 industrial gearboxes (60L SAE240 each) monthly with 220KGS drums.

Process: 1. Secure drum to trolley; connect pump to air supply (8 Bar); 2. Transfer 60L oil in ~4.3 minutes (14 L/Min); 3. Meter logs each dispense for inventory.

Effect: 5:1 pump avoids clogging; trolley handles heavy drums; meter simplifies cost tracking.

2. Heavy Machinery Workshop Maintenance

Scenario: A workshop services 10 excavators (45L SAE180 each) daily with 220KGS drums.

Process: 1. Move trolley to excavators; use 4m hose to reach oil tanks; 2. Dispense 45L in ~3.2 minutes; 3. Trolley’s casters navigate workshop floors easily.

Effect: Fast transfer meets daily demand; stable trolley reduces safety risks.

3. Large Farm Tractor Fleet Service

Scenario: A farm services 15 tractors (30L SAE200 each) seasonally with 220KGS drums.

Process: 1. Transport trolley to fields via utility vehicle; 2. Dispense 30L in ~2.1 minutes; 3. Zinc-plated trolley resists outdoor humidity.

Effect: Outdoor-friendly design; high-viscosity compatibility fits tractor needs.

IV. Frequently Asked Questions (FAQ)

Q1: Pump clogs with SAE240 oil. How to fix?

A1: 1. Ensure air pressure is 8 Bar (low pressure causes clogging); 2. Warm oil to 30-40℃ (reduces viscosity); 3. Clean 42mm suction tube with diesel to remove residue.

Q2: Can the trolley hold drums smaller than 180KGS?

A2: Yes. Adjust the clamping device to secure smaller drums (e.g., 150KGS). Add a 10-15KGS weight to the trolley’s empty side to balance and prevent tipping.

Q3: Meter display is unreadable in sunlight. What to do?

A3: 1. Tilt the meter downward to reduce glare; 2. Attach a portable sun shade (compatible with meter size); 3. Use the meter’s brightness adjustment (if available) for outdoor use.

Q4: How to maintain the pump long-term?

A4: 1. Flush with low-viscosity oil (e.g., SAE30) after using high-viscosity oil; 2. Clean suction tube monthly; 3. Lubricate air/oil connections quarterly; 4. Store in a dry area to avoid rust.
