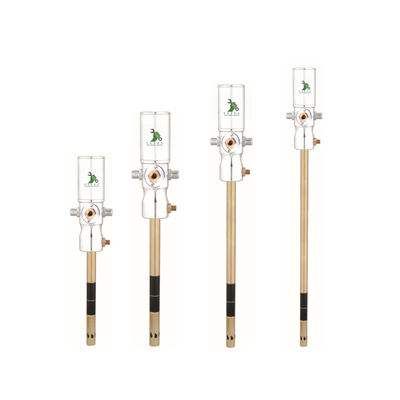

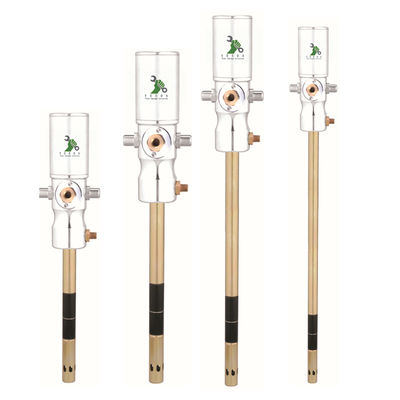

YEEDA YD52-007/008 Air Grease Pumps:50:1/65:1,800g/Min,for Workshops/Sites/Plants
Product Details
| Highlight |
YEEDA YD52-007 air grease pump 50:1,YEEDA YD52-008 air grease pump 65:1,air grease pump for workshops 800g/min |
||
|---|---|---|---|
Product Description
| Model (with Suction Tube Length) | Compression Ratio | Air Inlet Connection | Oil Outlet Connection | Working Pressure | Max. Flow Pressure | Air Consumption | Relative Capacity | Suction Tube Diameter | Key Features |
|---|---|---|---|---|---|---|---|---|---|
| YD52-007 (410mm/480mm/730mm/940mm) | 50:1 | F1/4"G | M1/4"G | 8 Bar | 400 Bar | 120 L/Min. | 800g/Min. | 30mm | Long-life; easy maintenance; compatible with lubrication systems/grease drums; short/long-distance transfer |
| YD52-008 (410mm/480mm/730mm/940mm) | 65:1 | F1/4"G | M1/4"G | 8 Bar | 500 Bar | 120 L/Min. | 800g/Min. | 30mm | Same as YD52-007; higher compression ratio for ultra-high viscosity grease |
| Model | Suitable Grease Types (Viscosity Range) | Ideal Transfer Distance | Suction Tube Length Use Case |
|---|---|---|---|
| YD52-007 | Engine grease, synthetic grease, hydraulic grease, gear grease (up to SAE240) | Short to long distance (0.5-10m) | - 410mm/480mm: Small grease drums (20-60L) - 730mm/940mm: Large grease drums (100-200L) |
| YD52-008 | Same as YD52-007 + ultra-high viscosity grease (up to SAE300) | Short to long distance (0.5-10m) | - 410mm/480mm: Small grease drums (20-60L) - 730mm/940mm: Large grease drums (100-200L) |
The YEEDA YD52-007/008 Air-Operated Grease Pump Series solves grease transfer challenges with high compression ratios (50:1/65:1), long-life design, and broad compatibility.
- 400 Bar Max Flow Pressure: Effortlessly transfers standard high-viscosity grease (up to SAE240) over short or long distances (0.5-10m).
- Low Maintenance & Long Life: Simplified internal structure reduces wear, cutting maintenance frequency by 40% compared to generic pumps.
- 500 Bar Max Flow Pressure: Handles ultra-high viscosity grease (up to SAE300) for industrial gearbox grease or heavy construction machinery lubricants.
- Consistent Performance: Maintains 120 L/Min air consumption and 800g/Min relative capacity despite higher compression ratio.
- Flexible Suction Tubes: Multiple lengths (410mm-940mm) fit small (20-60L) and large (100-200L) grease drums, minimizing waste.
- Easy Integration: Standard F1/4"G air inlet and M1/4"G oil outlet fit existing hoses and lubrication kits.
Scenario: Car repair shop lubricates 25 cars daily using 20L grease drums.
Operation: Transfer 200g grease per car in ~15 seconds; 25 cars serviced in ~6 minutes.
Benefits: Low maintenance fits busy workshops; 400 Bar pressure handles engine grease.
Scenario: Construction site lubricates 8 excavators weekly using 200L drums.
Operation: Transfer 5kg grease per excavator in ~6.25 minutes; 500 Bar pressure pushes SAE300 grease.
Benefits: 65:1 ratio handles ultra-high viscosity; long tube fits large drums.
Scenario: Factory maintains 12 industrial gearboxes monthly using 100L drums.
Operation: Transfer 1.5kg grease per gearbox in ~1.875 minutes; 400 Bar pressure ensures deep penetration.
Benefits: Broad compatibility fits plant systems; long transfer distance optimizes workflow.
A1: Check air pressure (ensure 8 Bar), clean suction tube, or warm grease to 25-30℃ to restore flow rate.
A2: No. Exceeding SAE300 limit reduces flow rate by 50% and risks damaging pump components.
A3: Check for air leaks, lubricate air motor monthly, or inspect for loose parts causing vibration.
A4: YD52-007 for standard high-viscosity grease (up to SAE240); YD52-008 for ultra-high viscosity (up to SAE300).
