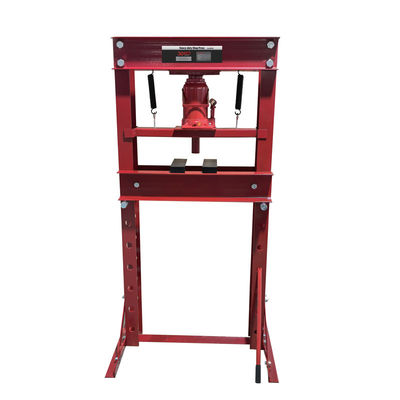

30-Ton Hydraulic Shop Press For Heavy-Part Press-Fitting, ±2% Pressure Control Accuracy
Product Details
| Model: | YD06-003 | Rated Capacity: | 30 Ton |
|---|---|---|---|
| Overall Width: | 750mm | Overall Height: | 1495mm |
| Inside Width Between Rails: | 505mm | Cylinder Stroke: | 152mm |
| Highlight |
30-ton hydraulic press,hydraulic press with pressure control,heavy-part press-fitting hydraulic press |
||
Product Description
Professional hydraulic press with 30-ton rated capacity, ±2% pressure control accuracy, and 750mm wide stable body. Ideal for heavy-part press-fitting, waste compression, and various industrial processing applications.
| Parameter Category | Parameter Name | Specific Value |
|---|---|---|
| Basic Information | Model | YD06-003 |
| Performance Parameter | Rated Capacity | 30 Ton |
| Dimension Parameter | Overall Width | 750mm |
| Dimension Parameter | Overall Height | 1495mm |
| Dimension Parameter | Inside Width Between Rails | 505mm |
| Dimension Parameter | Cylinder Stroke | 152mm |
| Dimension Parameter | Platform Height Range | 267mm-990mm |
| Weight Parameter | Shipping Weight | 125 Kgs |
The 30-Ton Hydraulic Shop Press is a professional hydraulic device designed for medium and heavy workpieces. Key features include:
- High-strength alloy steel construction for durability and deformation prevention under 30-ton capacity
- 505mm inside width between guide rails compatible with most small/medium workpieces
- 750mm overall width provides stable support for machine body
- Adjustable platform height (267mm-990mm) for various workpiece thicknesses
- 152mm cylinder stroke for sufficient vertical movement space
- ±2% pressure control accuracy reduces workpiece processing defects
- 125 Kgs shipping weight allows transfer with conventional forklift or hydraulic truck
Ideal for press-fitting heavy parts in construction and mining machinery, including large bearings and bushings. Prevents component cracking or misalignment from manual knocking.
Capable of bending, flanging, and straightening steel/iron plates (8-20mm thickness). Used in steel structure plants for creating brackets and repairing deformed parts.
Facilitates disassembly/assembly of medium-sized molds (automotive panels, large plastic molds) and tooling fixture debugging. Applies uniform pressure for mold separation or component press-fitting.
Compresses thick metal scraps (steel pipes, iron plates, mechanical parts) into high-density blocks, reducing volume by over 60% for easier storage and transportation.
- Check hydraulic oil level (minimum 1/3 of tank scale line)
- Inspect oil inlet filter for clogs (clean with diesel if needed)
- Contact professionals if hydraulic pump or solenoid valve issues are suspected
- Clean guide rails and lead screws of debris
- Apply lithium-based grease (Model 2#) to dry lead screws
- Check motor wiring and carbon brushes if jamming persists
- Check for oil return pipeline clogs
- Verify hydraulic oil viscosity (use 32# oil in low temperatures)
- Replace aged cylinder seals if needed
- Use ≥200 Kgs capacity forklift/crane with proper tilt control (≤10°)
- Install on hardened ground (≥500 Kg/㎡ capacity, ±3mm flatness)
- Verify 380V three-phase AC power supply with proper grounding (≤4Ω resistance)
- Conduct no-load test before gradual load testing (start at 50% capacity)
