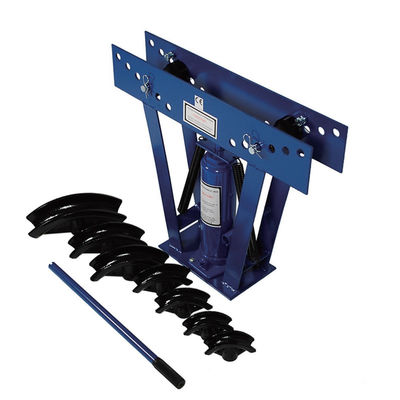

16T Pipe Bender: 90° Bend, 8 Dies, 139mm Stroke for Heating/Industrial Pipe Work

Large Image : 16T Pipe Bender: 90° Bend, 8 Dies, 139mm Stroke for Heating/Industrial Pipe Work

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD12-002

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	YD12-002 16T Pipe Bender	Model No.:	YD12-002
Core Performance:	Pipe Bending Capacity: Rated Bending Pressure 16 Tons, Maximum Bending Angle 90° Die Configuration: 8 Precision Bending Dies Covering 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"	Parameter Category Specific Value Product Name YD12-002 16T Pipe Bender Model No. YD12-002 Core Perf:	Equipment Dimension: 625×180×570mm Package Size: 63×17×56cm Ram Stroke: 139mm
Weight Parameter:	Equipment Weight: 58kg	Applicable Pipes:	Steel Pipes, Galvanised Pipes, Copper Alloy Pipes Commonly Used In Heating Engineering
Highlight:	16T pipe bender with 8 dies , 90° bend pipe bender for industrial work , 139mm stroke pipe bender for heating pipes

16T Pipe Bender: 90° Bend, 8 Dies, 139mm Stroke for Heating/Industrial Pipe Work

Product Specifications

Parameter Category	Specific Value
Product Name	YD12-002 16T Pipe Bender
Model No.	YD12-002
Core Performance	Pipe Bending Capacity: Rated bending pressure 16 tons, maximum bending angle 90° Die Configuration: 8 precision bending dies covering 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"
Dimension Parameters	Equipment Dimension: 625×180×570mm Package Size: 63×17×56cm Ram Stroke: 139mm
Weight Parameter	Equipment Weight: 58kg
Applicable Pipes	Steel pipes, galvanised pipes, copper alloy pipes commonly used in heating engineering
Main Material	Machine Body: 3mm-thick cold-rolled steel plate with anti-rust treatment Dies: Precision-cast chrome-molybdenum alloy steel (hardness HRC 52-56) Ram: 40Cr quenched and tempered steel

Key Features

16-Ton High-Pressure Output

Enables wrinkle-free and crack-free bending of large-diameter thick-walled pipes commonly used in heating engineering with a pipe bending qualification rate of over 99%.

8 Full-Specification Dies

Precision-cast dies covering 3/4"-3" common pipe diameters with quick disassembly and replacement system (45 seconds for die switching).

139mm Long Stroke + Angle Self-Locking

Complete 90° bending of 3" pipes with one pressure application and angle accuracy ±1° for precise pipeline connections.

Heavy-Duty Structure

Integrally welded 3mm-thick steel plates with I-shaped reinforcing rib for stability during heavy bending operations.

Application Scenarios

Heating Engineering Pipeline Laying: Efficient 90° bending of 2" galvanized pipes for residential heating systems
Industrial Plant Steam Pipeline Installation: Precise 45° bending of 3" thick-walled steel pipes for high-pressure steam systems
Municipal Heating Network Maintenance: Emergency 60° bending of 2-1/2" steel pipes for pipeline repairs
Commercial Kitchen Exhaust Pipeline Processing: Clean 90° bending of 1-1/4" stainless steel pipes for ventilation systems

Frequently Asked Questions

Q1: Will using a 3" die to bend a steel pipe with 7mm wall thickness damage the equipment?

A1: Yes, this exceeds the load limit. The 3" die is rated for steel pipes with wall thickness ≤6mm. For thicker pipes, consult the manufacturer for custom solutions.

Q2: Can 2 people carry the 58kg equipment to a 3rd-floor workstation?

A2: Yes, the split design allows carrying body (40kg) and dies (18kg) separately. Anti-slip handles make transportation manageable.

Q3: Why does "flattening" occur during bending?

A3: Typically caused by incorrect die adaptation or fast pressure application. Verify die specification match and adjust pressure speed.

Q4: How to calibrate ram stroke after 2 years of use?

A4: Adjust via the stroke adjustment screw following manufacturer's procedure. For complex issues, contact technical support.
