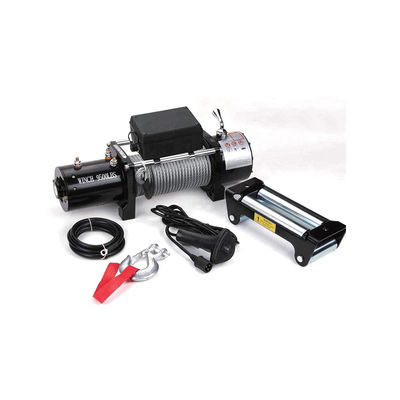

12V Winch: 9500LBS Pull, 30m Wireless Ctrl for Mine/Construction/ATV Rescue

Large Image : 12V Winch: 9500LBS Pull, 30m Wireless Ctrl for Mine/Construction/ATV Rescue

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD30-009

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Weight:	Net 37kg, Gross 38kg	Package Dimension:	610×350×270mm
Overall Dimension:	529×160×217mm	Drum Dimension:	65.3mm × 225.3mm
Motor:	4.4kw Series-wound Motor	Gear Reduction:	191:1 3-stage Planetary
Highlight:	12V winch with wireless control , 9500LBS winch for ATV rescue , 30m wireless winch for construction

12V Winch: 9500LBS Pull, 30m Wireless Ctrl for Mine/Construction/ATV Rescue

Product Specifications

Core Parameters

Parameter Category	Specific Description
Product Model	YD30-009 (12V 9500LBS Wireless Remote ATV Electric Winch)
Product Positioning	Designed for heavy-duty off-road rescue and industrial-grade heavy-load traction scenarios, serving fields such as large ATV/UTV rescue, medium truck traction, engineering equipment movement, and mine operations.
Dimension & Weight	Weight: Net 37kg, Gross 38kg Package Dimension: 610350270mm Overall Dimension: 529160217mm Drum Dimension: 65.3mm * 225.3mm
Load & Performance	Rated Line Pull: 9500LBS (4309kg) Motor: 4.4kw series-wound motor Gear Reduction: 191:1 3-stage planetary Steel Cable: 9.1mm * 26m galvanized Remote Control: 30m wireless range

Key Features

Heavy-Duty Power System

4.4kw series-wound motor with 9500LBS pull capacity
191:1 3-stage planetary gear reduction for stable operation
Continuous operation capability (40+ minutes at full load)

Intelligent Safety Protection

30m wireless remote control with emergency stop
Triple safety protection: automatic braking, overload protection, anti-drop design
IP68 rated waterproof/dustproof construction

Easy Installation & Compatibility

Standard 255mm*114mm mounting pattern
Triple control modes: wireless, wired, and manual
Complete accessory kit included

Application Scenarios

Heavy ATV/UTV Mine Rescue

Rapid traction of 4000kg vehicles from mine mud with operator safety at 30m distance.

Construction Equipment Movement

Precise positioning of 3000kg loaders in narrow spaces with dust/water resistance.

Mine Rescue Supply Lifting

1500kg capacity for vertical lifting operations in challenging mine environments.

Frequently Asked Questions

Q: Can it actually pull a 3500kg medium truck?

A: Yes, with built-in overload protection and safety margin. The motor will automatically shut down if pull force exceeds rated capacity.

Q: What if wireless signal is interrupted?

A: Switch to wired remote or manual control included with the unit.

Q: How to maintain the steel cable?

A: Clean weekly and apply high-temperature lithium grease. Replace if broken wires exceed safety standards.
