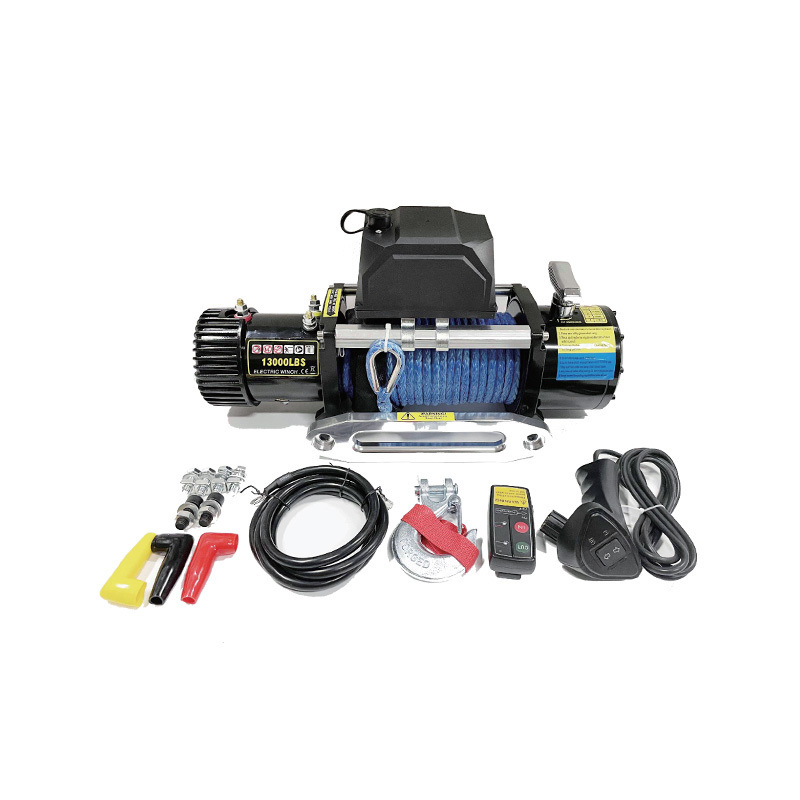

12V Winch: 13000LBS Pull, 26m Synthetic Rope for 4×4/Construction/Mine

12V Winch: 13000LBS Pull, 26m Synthetic Rope for 4×4/Construction/Mine
12V Winch: 13000LBS Pull, 26m Synthetic Rope for 4×4/Construction/Mine

Large Image :  12V Winch: 13000LBS Pull, 26m Synthetic Rope for 4×4/Construction/Mine

Product Details:
Place of Origin: Zhejiang，China
Brand Name: YEEDA
Certification: CE
Model Number: YD30-010
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: Carton Box or Crate
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: 500PCS/MONTH
Contact Now
Detailed Product Description
Weight:: Net Weight 38kg, Gross Weight 39kg Package Dimension: 610×350×270mm
Overall Dimension: 527×160×217mm Drum Dimension:: Diameter 64mm × Length 225.3mm
Mounting Hole: Bolt Hole Spacing 255mm×114mm, Hole Diameter 11mm Rated Line Pull: 13000LBS (5897kg, Single Line)
Highlight:

12V winch with synthetic rope

,

13000LBS winch for 4x4

,

heavy-duty winch for construction

YD30-010 12V 13000LBS (5.9-Ton) 4*4 Synthetic Rope Electric Winch
Product Specifications
Parameter Category Specific Description
Product Model YD30-010 (12V 13000LBS (5.9-Ton) 4*4 Synthetic Rope Electric Winch)
Product Positioning Designed for heavy-duty off-road and industrial-grade heavy-load traction scenarios, serving fields such as 4*4 off-road vehicle rescue, medium truck/pickup traction, engineering equipment movement, and mine/oilfield operations.
Dimension & Weight Parameters
  • Weight: Net Weight 38kg, Gross Weight 39kg
  • Package Dimension: 610*350*270mm
  • Overall Dimension: 527*160*217mm
  • Drum Dimension: Diameter 64mm * Length 225.3mm
  • Mounting Hole: Bolt hole spacing 255mm*114mm, hole diameter 11mm
Load & Performance Parameters
  • Rated Line Pull: 13000LBS (5897kg, single line)
  • Motor Performance: 5.0kw (6.8hp) series-wound motor
  • Gear Reduction Ratio: 191:1 3-stage planetary gear transmission
  • Braking System: Automatic In-The-Drum braking
  • Synthetic Rope: 9.5mm * 26m UHMWPE material
Key Features
Heavy-Duty Power + Synthetic Rope Advantages
  • 5.0kw Series-Wound Motor with rated pull force of 13000LBS (5897kg)
  • 9.5mm Lightweight Synthetic Rope weighs only 1/5 of equivalent steel rope
  • PTFE wear-resistant coating extends service life to twice that of steel ropes
Triple Safety Protections
  • In-Drum Automatic Braking locks within 0.05 seconds
  • Dual circuit protection with 40A fuse and temperature sensor
  • IP68 protection rating for dustproof, waterproof, and sandproof operation
Easy Installation & Adaptation
  • Standard 255mm*114mm mounting hole spacing for universal compatibility
  • Reserved wireless remote control interface for easy upgrade
  • Complete installation kit included for quick setup
Application Scenarios
4*4 Hardcore Off-Road Vehicle Desert/Rainforest Trapped Rescue
Operation Process:
  • 3-person installation and wiring completed in minutes
  • 26m synthetic rope (3.2kg) easily deployed by one person
  • Rescue time reduced from 4 hours to 15 minutes
Medium Loader Traction in Construction Sites
Operation Process:
  • Compatible with engineering vehicle's 12V battery
  • IP68 protection for dust and water resistance
  • Traction efficiency increased by 95%
Frequently Asked Questions
Q1: Can it actually pull a 4500kg medium truck?

Yes, safely with no overload risk. The 5897kg rated pull force exceeds typical traction resistance of a 4500kg truck. Motor has built-in overload protection and works with vehicle idle power replenishment.

Q2: How does the synthetic rope compare to steel ropes?

Longer service life and better scratch resistance. PTFE coating resists wear, with service life up to 5 years (twice steel ropes). Minor scratches can be repaired without immediate replacement.

Q3: How to upgrade to wireless control?

Use same-brand wireless kit for plug-and-play upgrade without wiring modifications. Maintains all original functions while adding wireless capability.
