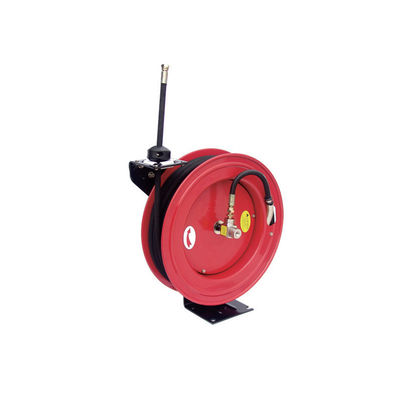

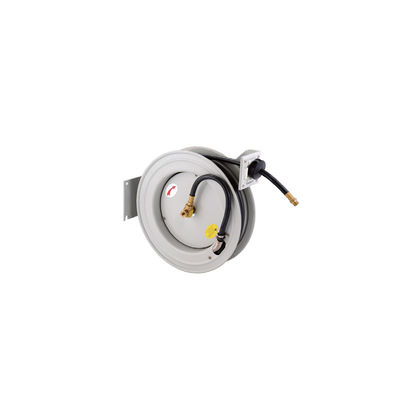

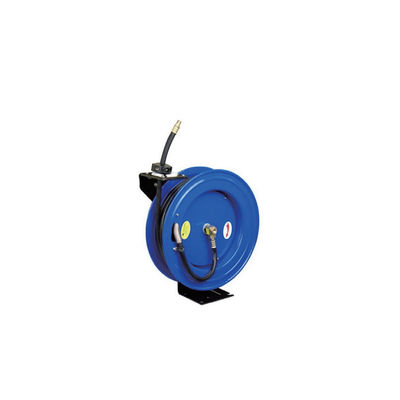

YEEDA YD53 Series Auto Retractable Air Hose Reels 10-30m 20-30Bar For Workshops/Plants/Centers
Product Details
| Highlight |
auto-retractable air hose reels for workshops,air hose reels 20-30 Bar,10m industrial retractable air hose reels |
||
|---|---|---|---|
Product Description
Professional-grade auto-retractable air hose reels with 10-30m hose lengths and 20-30Bar working pressure, designed for workshops, plants, and service centers.
| Series (Model No. Group) | Model | Hose Material | Hose I.D. | Hose Length | Working Pressure | Connection Size | Key Application |
|---|---|---|---|---|---|---|---|
| Auto Rewind Economical DIY (310) | YD53-001 | Germany Flexible Hose | 1/4" | 10m | 30 Bar | 1/4" | Home DIY, small workshop pneumatic tools |
| YD53-002 | Germany Flexible Hose | 3/8" | 8m | 30 Bar | 3/8" | Small-scale washdown, light industrial use | |
| YD53-003 | Germany Flexible Hose | 3/8" | 10m | 30 Bar | 3/8" | Mobile pneumatic tool operations | |
| Auto Rewindable Pneumatic (320) | YD53-004 | Germany Flexible Hose | 1/4" | 15m | 30 Bar | 1/4" | Medium workshop air services, fleet maintenance |
| YD53-005 | Germany Flexible Hose | 3/8" | 15m | 30 Bar | 3/8" | Manufacturing plant lubrication, repair tasks | |
| YD53-006 | Germany Flexible Hose | 1/2" | 10m | 30 Bar | 1/2" | Heavy-duty washdown, high-flow air tools | |
| YD53-007 | Germany Flexible Hose | 1/2" | 12m | 30 Bar | 1/2" | Industrial facility air distribution | |
| Auto Retractable (330) | YD53-008 | Hybrid Rubber Hose | 3/8" | 20m | 20 Bar | 3/8" | Large workshop overhead air supply, maintenance |
| YD53-009 | Hybrid Rubber Hose | 1/2" | 15m | 20 Bar | 1/2" | Automotive service centers, fleet repair | |
| YD53-010 | Hybrid Rubber Hose | 3/8" | 30m | 20 Bar | 3/8" | Warehouse-wide air services, long-distance tools | |
| YD53-011 | Hybrid Rubber Hose | 1/2" | 20m | 20 Bar | 1/2" | Heavy-industry maintenance, large-scale washdown |
| Feature Category | Specific Specification |
|---|---|
| Construction Material | Professional-grade heavy-duty steel (reel frame, base, support post); 1" solid steel axle |
| Finish | Durable proprietary CPC powder coat (anti-rust, corrosion-resistant to oil, water, and industrial dust) |
| Disc Design | CNC robotically spun and nibbed discs with rolled edges (enhanced strength, safety, and durability) |
| Mounting Options | Adjustable guide arm for bench, wall, ceiling, and vehicle mounting (space-saving, flexible workplace layout) |
| Rotation & Stability | 1/4" heavy-gauge one-piece steel base + support post (max stability); lubricated precision bearings (smooth reel rotation) |
| Core Function | Auto-retractable/rewindable (eliminates hose tangles; easy storage after use) |
The YEEDA YD53 Series Auto-Retractable Air Hose Reels solve key air hose management challenges: tangled hoses, limited reach, poor durability, and disorganized workspaces. With 3 series for diverse needs + heavy-duty steel build + multi-mount design as core strengths, they redefine efficiency for air-related tasks across industries.
- 310 Series (Economical DIY): Ideal for home DIYers and small workshops with short-to-medium hose lengths (8-10m), 30 Bar pressure, and Germany flexible hose for light tasks like pneumatic screwdrivers or small washdowns.
- 320 Series (Pneumatic Industrial): Designed for medium-to-heavy industrial use with 15m hose length, 30 Bar pressure, and durable German hose for manufacturing plant lubrication, fleet maintenance, and heavy tool operations.
- 330 Series (Heavy-Duty Retractable): Built for large-scale industrial and commercial use with extra-long hoses (15-30m), hybrid rubber hose (superior flexibility and wear resistance), and 20 Bar pressure for warehouse-wide air services, automotive centers, and heavy maintenance.
- Steel Construction & CPC Coating: Heavy-duty steel frame, 1" solid axle, and CPC powder coat resist rust, impacts, and industrial wear—service life exceeds 8 years, twice that of plastic reels. CNC-spun discs with rolled edges prevent hose damage and ensure operator safety.
- Precision Bearings & Stable Base: Lubricated precision bearings enable smooth reel rotation (no jamming), while the one-piece steel base and support post keep the reel stable during use—even when the hose is fully extended.
- Multi-Mount Options: Adjustable guide arm fits bench, wall, ceiling, or vehicle mounting, saving 50% of workspace compared to floor-standing reels. Ceiling mounting keeps hoses off the ground, avoiding tripping hazards.
- Auto-Retractable/Rewindable Design: Eliminates manual hose coiling—after use, the hose retracts automatically into the reel, reducing setup/cleanup time by 40%. Prevents hose tangles and extends hose life.
Scenario Requirement: An auto repair center services 20 cars daily, using pneumatic tools (wrenches, impact drills) and washdown equipment. The center needs long-reach, durable hoses that stay organized.
Operation Process:
- Setup: Mount YD53-009 (15m hybrid rubber hose, 1/2" I.D.) on the ceiling above each repair bay; connect to the center's compressed air system
- Use: Extend the 15m hose to reach any part of the car (e.g., undercarriage for washdown, engine bay for pneumatic tools); the auto-retract function pulls the hose back after use
- Efficiency: 20 cars serviced in ~4 hours; no hose tangles or tripping hazards; hybrid rubber hose resists oil stains and wear
- Durability: The CPC-coated steel reel withstands daily impacts from tools and vehicle parts
Effect: Long reach fits repair bays; auto-retract saves time; durability suits busy centers.
Scenario Requirement: A factory lubricates 15 industrial machines daily using pneumatic lubrication tools. The machines are spaced 10-12m apart, requiring flexible hose reach.
Operation Process:
- Setup: Install YD53-005 (15m German flexible hose, 3/8" I.D.) on walls between machine bays; connect to the plant's air supply
- Lubrication: Extend the 15m hose to reach each machine's lubrication points; 30 Bar pressure powers the pneumatic lubrication tool
- Organization: Auto-rewind keeps the hose off the factory floor, avoiding damage from machinery or carts
- Reliability: The steel base and precision bearings ensure stable operation—no downtime from reel jamming
Effect: Long reach covers machine bays; auto-rewind maintains organization; industrial design fits factory conditions.
Scenario Requirement: A home DIY enthusiast uses pneumatic tools (nail guns, sanders) and small washdown tools. The workshop has limited space and needs a compact, easy-to-use hose reel.
Operation Process:
- Setup: Mount YD53-001 (10m German flexible hose, 1/4" I.D.) on a workbench; connect to a portable air compressor
- DIY Tasks: Extend the 10m hose to use nail guns for woodworking or small washdown tools for cleaning; the lightweight hose is easy to maneuver
- Storage: Auto-rewind retracts the hose into the reel after use, saving space in the small workshop
- Convenience: The 30 Bar pressure handles all light DIY tools, and the German hose is flexible enough for tight spaces
Effect: Compact design fits small workshops; easy use suits DIY tasks; auto-rewind saves storage space.
A1: Uneven retraction is usually due to hose twists or debris. Solutions:
- Straighten the Hose: Before retracting, fully extend the hose to remove twists—twists cause jamming
- Clean the Reel Track: Wipe the reel's inner track with a dry cloth to remove dust, oil, or debris (buildup blocks smooth retraction)
- Lubricate Bearings: Apply a small amount of lithium-based lubricant to the precision bearings quarterly—dry bearings increase friction and cause sticking
These steps restore smooth auto-retraction.
A2: Yes, but with precautions. The hybrid rubber hose resists mild weather (rain, light snow) and temperature changes (-10℃ ~ +60℃), making it suitable for covered outdoor areas (e.g., garage doorways, covered workshops). However:
- Avoid Direct Sunlight: Prolonged UV exposure can degrade the rubber over time—use a UV cover if mounted outdoors
- Prevent Freezing: Drain the hose of compressed air in temperatures below 0℃—frozen moisture can damage the hose and reel
- Avoid Chemical Exposure: Keep the hose away from harsh chemicals (e.g., industrial cleaners) that may break down the rubber
A3: Air leaks at connections are caused by loose fittings or worn seals. Fixes:
- Tighten Connections: Use a wrench to gently tighten the hose's inlet/outlet connections (over-tightening may damage threads)
- Replace Seals: Check the rubber O-rings inside the connections—if cracked or worn, replace them with manufacturer-supplied O-rings (worn seals are the most common cause of leaks)
- Inspect Threads: Ensure the connection threads are not stripped—stripped threads prevent a tight seal; replace the connection fitting if threads are damaged
A4: Base the choice on task type, hose length, and pressure:
- DIY/Home Use: Choose 310 Series (YD53-001/002/003)—short hoses (8-10m), 30 Bar pressure, and lightweight design for light tools
- Medium Industrial Use: Choose 320 Series (YD53-004/005/006/007)—15m hoses, 30 Bar pressure, and durable German hose for manufacturing or fleet maintenance
- Heavy-Duty/Commercial Use: Choose 330 Series (YD53-008/009/010/011)—extra-long hoses (15-30m), hybrid rubber hose, and 20 Bar pressure for automotive centers or large warehouses
Also, match the hose I.D. to your tool's air flow needs (1/4" for small tools, 1/2" for high-flow tools).
