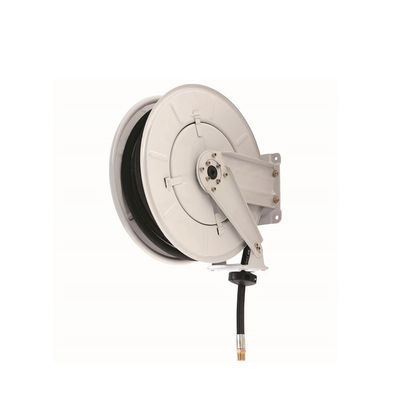

YEEDA YD53-012 to YD53-018 Heavy Duty Retractable Wall-Mounted Hose Reels
Product Specifications
Model-Specific Parameter Summary
| Model (Item No. 610) |
Hose Material |
Hose I.D. |
Hose Length |
Working Pressure |
Connection Size |
Ideal Fluid/Task |
| YD53-012 |
SAE 100 R1AT |
1/4" |
15m (50FT) |
20-187 Bar |
1/4" |
Motor oil, low-to-medium pressure lubrication |
| YD53-013 |
SAE 100 R2AT |
1/4" |
15m (50FT) |
350 Bar |
1/4" |
High-pressure grease, heavy-duty lubrication |
| YD53-014 |
SAE 100 R1AT |
5/16" |
15m (50FT) |
20-166 Bar |
1/4" |
Medium-viscosity motor oil, precision lubrication |
| YD53-015 |
SAE 100 R1AT |
3/8" |
15m (50FT) |
20-153 Bar |
3/8" |
High-flow motor oil, large machinery lubrication |
| YD53-016 |
SAE 100 R2AT |
3/8" |
15m (50FT) |
280 Bar |
3/8" |
High-pressure grease, industrial gearbox lubrication |
| YD53-017 |
SAE 100 R1AT |
1/2" |
15m (50FT) |
20-136 Bar |
1/2" |
Extra-high-flow motor oil, fleet vehicle maintenance |
| YD53-018 |
SAE 1100 R2AT |
1/2" |
15m (50FT) |
230 Bar |
1/2" |
Medium-pressure grease, heavy machinery washdown |
Universal Structural & Functional Specifications
| Feature Category |
Specific Specification |
| Mounting Type |
Wall-mounted (space-saving, suitable for workshops with limited floor space) |
| Core Design |
Dual-arm structure; self-leveling system (ensures easy, even hose winding); 4-roller hose guide (reduces hose wear by 30% vs. single-roller designs) |
| Operation Mechanism |
12-position ratchet gearing lock (allows hose to be fixed at any length; prevents unexpected retraction during use) |
| Installation Flexibility |
3 adjustable fixed positions (adapts to different wall heights and workshop layouts) |
| Durability |
Heavy-duty steel frame (resists impacts and industrial wear); corrosion-resistant coating (protects against oil, water, and dust) |
| Applicable Fields |
Oil/high-pressure water services, pneumatic tools, washdown, lubrication, general industrial use, manufacturing plants, maintenance/repair, automotive/fleet service centers |

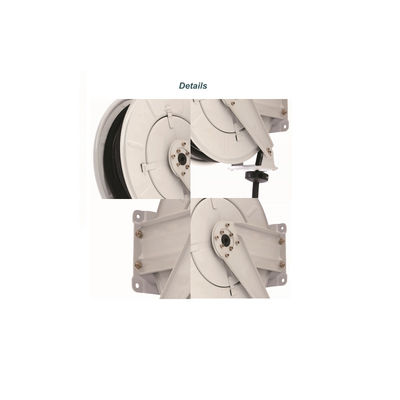

Product Details
The YEEDA YD53-012 to YD53-018 Heavy Duty Retractable Wall-Mounted Hose Reels solve critical pain points in industrial lubrication and fluid transfer: "hose wear, unstable length control, limited installation options, and inefficient storage". With dual-arm structure + 12-position ratchet lock + high-pressure hose compatibility as core strengths, they deliver reliable performance for heavy-duty oil and grease tasks.
Durability & Hose Protection
- 4-Roller Hose Guide & Self-Leveling System: The 4-roller design evenly distributes pressure on the hose during retraction, minimizing friction and extending hose life. The self-leveling system ensures the hose winds up smoothly without kinks--critical for high-pressure hoses (e.g., SAE 100 R2AT in YD53-013) that are prone to damage from uneven winding.
- Heavy-Duty Build: The steel frame and corrosion-resistant coating withstand daily impacts in busy workshops and protect against oil/grease degradation. This durability ensures a service life of 7+ years, outperforming lightweight plastic reels.
Flexible Operation & Installation
- 12-Position Ratchet Lock: Unlike basic reels with limited length stops, the 12-position lock lets users fix the 15m hose at any desired length--ideal for tasks requiring precise reach (e.g., lubricating hard-to-access machinery parts). It also prevents the hose from retracting unexpectedly, enhancing operator safety.
- 3 Adjustable Fixed Positions: The reel can be mounted at 3 different heights/angles on the wall, fitting diverse workshop layouts. Wall-mounted design saves floor space, keeping walkways clear of tripping hazards.
High-Pressure Compatibility & Versatility
- SAE-Certified Hoses: Each model features SAE 100 R1AT/R2AT or SAE 1100 R2AT hoses, designed for motor oil and grease. The hoses handle pressures from 20 Bar (light lubrication) to 350 Bar (heavy-duty grease transfer), making the reels suitable for everything from automotive oil changes to industrial gearbox maintenance.
- 15m Length: The 15m hose provides ample reach to service multiple pieces of machinery without repositioning the reel--saving time in large workshops or fleet service centers.
Application Scenarios
Automotive Service Center Oil Changes (YD53-015)
Scenario Requirement: A car repair shop performs 30 oil changes daily, using 5W-30 motor oil. The shop needs a hose reel that delivers high-flow oil and can be fixed at different lengths to reach various vehicle models.
Operation Process:
- Setup: Mount YD53-015 (3/8" I.D., SAE 100 R1AT hose, 15m length) on the workshop wall at a 1.5m height (one of the 3 fixed positions); connect to the oil storage system;
- Oil Change: Pull the hose to 2-3m (fixed via ratchet lock) to reach sedan engines, or 4-5m for SUVs; the 3/8" I.D. hose delivers high-flow oil, completing one oil change in ~5 minutes;
- Efficiency: 30 oil changes finished in 2.5 hours; the 4-roller guide prevents hose wear from frequent use;
- Safety: The ratchet lock keeps the hose stable, avoiding spills during oil transfer.
Effect: High-flow hose meets daily demand; adjustable length fits all vehicle types; wall-mounted design saves space.
Manufacturing Plant Gearbox Lubrication (YD53-013)
Scenario Requirement: A factory lubricates 12 industrial gearboxes (using high-pressure grease, SAE240) weekly. The gearboxes are spaced 8-10m apart, requiring a high-pressure, long-reach hose.
Operation Process:
- Setup: Install YD53-013 (SAE 100 R2AT hose, 350 Bar pressure) on the wall near the gearbox area; set the fixed position to 2m height for easy access;
- Lubrication: Extend the 15m hose to each gearbox (fixed at 8-10m via ratchet lock); the 350 Bar pressure pushes SAE240 grease into gear teeth;
- Durability: The steel frame resists factory dust and impacts; the corrosion-resistant coating protects against grease buildup;
- Reliability: The self-leveling system ensures the hose winds up smoothly after each use, no kinks or damage.
Effect: High-pressure hose handles thick grease; long reach covers all gearboxes; durable build fits industrial conditions.
Fleet Service Center Heavy Truck Maintenance (YD53-017)
Scenario Requirement: A fleet center services 15 heavy trucks weekly, needing to transfer large volumes of motor oil (15-20L per truck) quickly. The center requires a high-flow, space-saving reel.
Operation Process:
- Setup: Mount YD53-017 (1/2" I.D., SAE 100 R1AT hose) on the wall of the maintenance bay; adjust the fixed position to 3m height for truck engine access;
- Oil Transfer: Pull the 15m hose to 6-8m (fixed via ratchet lock) to reach truck engines; the 1/2" I.D. hose delivers 20L oil in ~3 minutes per truck;
- Convenience: The 12-position lock allows the hose to be fixed at the exact length needed, avoiding excess slack;
- Space-Saving: Wall-mounted design keeps the 15m hose off the floor, preventing damage from truck tires.
Effect: High-flow hose speeds up maintenance; space-saving design fits busy bays; adjustable length suits truck heights.
Frequently Asked Questions
Q1: The hose retracts with a jerk or gets stuck. How to fix this?
A1: Jerky or stuck retraction is usually due to misalignment or debris. Solutions:
- Check Self-Leveling System: Ensure the self-leveling mechanism is clean and lubricated--add a drop of oil-resistant lubricant to the system's pivot points;
- Clear Debris: Wipe the 4-roller guide and hose surface to remove oil residue or dust (buildup causes friction);
- Adjust Ratchet Lock: If the ratchet is too tight, loosen the lock's adjustment screw slightly (refer to the user manual) to allow smoother movement. These steps restore steady retraction.
Q2: Can YD53-013 (350 Bar) be used for water instead of grease?
A2: Yes, but only for high-pressure water services (as listed in applicable fields). However:
- Flush the Hose First: If switching from grease to water, flush the hose with clean water to remove residual grease--grease mixed with water can cause clogs;
- Check Compatibility: Ensure the water pressure does not exceed 350 Bar (the reel's max working pressure);
- Dry After Use: After water use, retract the hose and drain any remaining water to prevent internal rust. For regular water-only tasks, choose a model with lower pressure (e.g., YD53-012) to avoid overworking the reel.
Q3: The ratchet lock fails to hold the hose at the desired length. What's wrong?
A3: Lock failure is typically due to worn ratchet teeth or a loose spring. Fixes:
- Inspect Ratchet Teeth: Check the ratchet gears for wear--if teeth are damaged, replace the ratchet assembly (available from the manufacturer);
- Tighten the Spring: Locate the ratchet spring (inside the reel) and tighten its mounting screw--loose springs reduce lock tension;
- Clean the Lock Mechanism: Wipe the ratchet and lock components with a cloth to remove oil/grease buildup that may be preventing engagement.
Q4: How to maintain the reel to ensure long-term performance?
A4: Key maintenance steps:
- Hose Care: Inspect the hose monthly for cracks or leaks; replace damaged hoses immediately (use only SAE-certified replacements);
- Lubrication: Apply oil-resistant lubricant to the 4-roller guide, ratchet lock, and self-leveling system every 3 months;
- Frame Maintenance: Wipe the steel frame with a dry cloth to remove oil/dust; touch up scratches on the corrosion-resistant coating with matching paint;
- Storage: In cold weather, drain any fluid from the hose to prevent freezing; store the reel in a dry area to avoid rust.
