Piston Ring Compressor : 53-175mm, Damage-Free for Automotive Engine Rebuilds

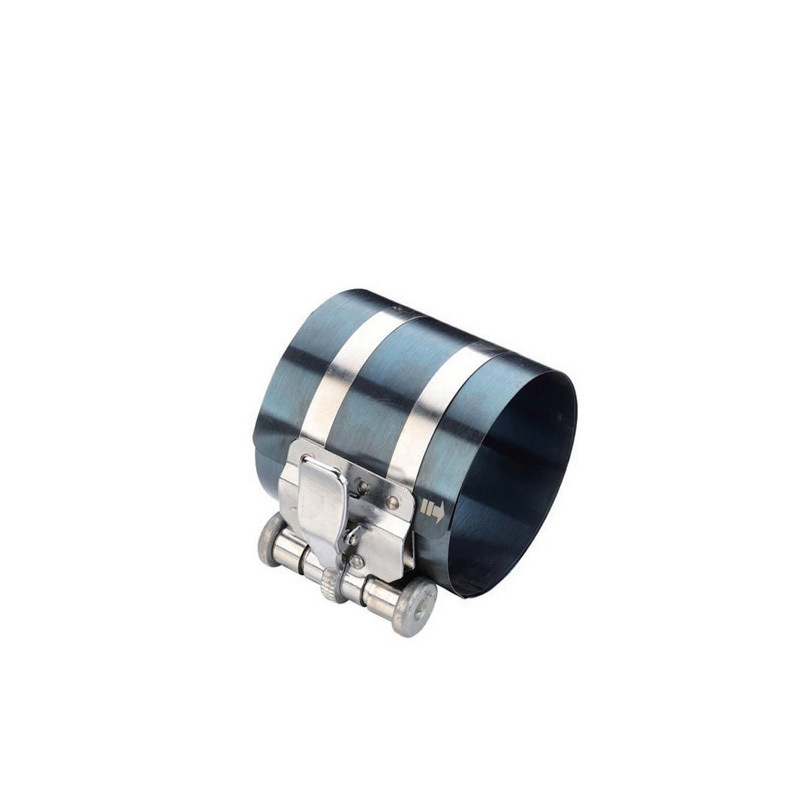

Piston Ring Compressor (Models: YD69-004A, YD69-004B, YD69-004C)
Product Specifications
| Specification Category |
YD69-004A |
YD69-004B |
YD69-004C |
| Model Number |
YD69-004A |
YD69-004B |
YD69-004C |
| Size Label |
3" (75mm) |
4" (100mm) |
6" (150mm) |
| Size Range |
53-125mm |
90-175mm |
90-175mm |
| Quantity per Carton (QTY/CTN) |
50 PCS |
50 PCS |
50 PCS |
| Gross Weight per Carton (G.W./CTN) |
11 KGS |
13 KGS |
23 KGS |
| Package Size per Carton (CM) |
47×38×19 |
47×38×22.5 |
47×39×33 |
Product Details
The Piston Ring Compressor series (YD69-004A, YD69-004B, YD69-004C) is a set of professional tools designed to simplify the critical step of inserting pistons with pre-installed rings into engine cylinders by safely compressing piston rings to fit the cylinder bore.
Each model is engineered for precise size adaptability. Piston rings, when installed on pistons, have an outer diameter larger than the cylinder bore; forcing them in without compression risks damaging the rings or scratching the cylinder wall. These compressors feature a cylindrical design with adjustable clamping mechanisms: users place the compressor over the piston's top, tighten the tool to evenly compress the rings until their outer diameter matches the cylinder bore, and then smoothly lower the piston into the cylinder. This ensures zero damage to both the rings and the cylinder, preserving the engine's sealing performance and longevity.
The three models cover diverse piston sizes for automotive and light mechanical engines. YD69-004A (53-125mm range) is ideal for small-displacement engines (e.g., in compact cars or small generators). YD69-004B and YD69-004C (both 90-175mm range) cater to medium to large pistons, with YD69-004C (6" label) offering enhanced structural support for larger, heavier pistons (common in trucks or commercial vehicles). All compressors are built with durable materials to withstand repeated clamping force, and their smooth inner surfaces prevent friction-related damage to piston rings during compression.
Application Scenarios
This Piston Ring Compressor series is essential for scenarios involving piston installation in engine maintenance or rebuilds:
- Automotive Repair Shops: Mechanics rely on these tools during engine overhauls or piston replacements. For example, when fixing a seized engine or replacing worn pistons, the compressors ensure quick, damage-free piston insertion, reducing repair time and improving work efficiency.
- Engine Rebuild Workshops: Specialized shops that rebuild engines (e.g., for classic cars, performance vehicles, or industrial equipment) use the full series to handle pistons of varying sizes, from small 4-cylinder car engines to larger 6-cylinder truck engines.
- DIY Engine Enthusiasts: Hobbyists working on home engine rebuild projects (such as restoring old motorcycles or upgrading car engines) depend on these compressors to avoid costly mistakes. The user-friendly design makes professional-grade piston installation accessible without specialized training.
- Light Mechanical Maintenance: Beyond automotive engines, the compressors are also useful for small industrial engines (e.g., in construction equipment or agricultural machinery) that use piston-ring systems, expanding their practicality across industries.
Frequently Asked Questions (FAQs)
Q1: How do I know which model to choose for my piston?
A1: Measure the outer diameter of your piston (with rings installed). Select YD69-004A if the diameter is 53-125mm; choose YD69-004B or YD69-004C if it's 90-175mm (YD69-004C is preferred for heavier/larger pistons for extra stability).
Q2: Can these compressors be used for diesel engine pistons?
A2: Yes, they work for most light to medium-duty diesel engine pistons (e.g., in pickup trucks or small commercial vans) as long as the piston diameter falls within the compressor's size range. For heavy-duty diesel engines (e.g., in large trucks), check if the piston size exceeds 175mm (the maximum range of the series) before use.
Q3: Will over-tightening the compressor damage the piston rings?
A3: No, if used correctly. The compressors are designed with a torque limit in their clamping mechanisms (or visual indicators) to prevent over-compression. Stop tightening once the rings are fully retracted into the compressor's inner bore (you'll see no part of the rings protruding) to avoid unnecessary stress on the rings.
Q4: How should I store these compressors to maintain their durability?
A4: After use, wipe the compressors with a clean, dry cloth to remove oil and metal debris. For long-term storage, apply a light coat of anti-rust oil to the adjustable parts (e.g., screws, clamping surfaces) to prevent corrosion. Store them in a dry, cool toolbox to avoid moisture damage.
